Product Specifications
| # Manufacturer Number | EMB41180 |
| Diameter (Decimal Inch) | 0.7087" |
| Diameter (Inch) | 17/24" |
| Diameter (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.7087" |
| Shank Diameter (Inch) | 17/24" |
| Shank Diameter (mm) | 18.00mm |
| Length og Cut (Decimal Inch) | 0.9449" |
| Length og Cut (Inch) | 17/18" |
| Length og Cut (mm) | 24.00mm |
| Overall Length (Decimal Inch) | 3.3071" |
| Overall Length (Inch) | 3-4/13" |
| Overall Length (mm) | 84.00mm |
| Number of Flutes | 4 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center |
| Series | EMB41 |
| Application | PMS |
| Cutting Direction | Right |
| Length Type | Short |

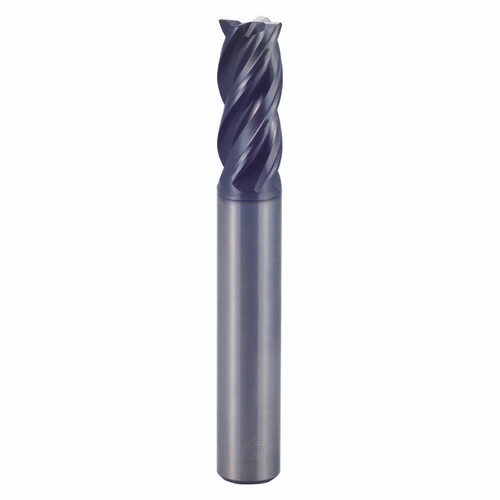

| Product Type | Square End Mill |
