Product Specifications

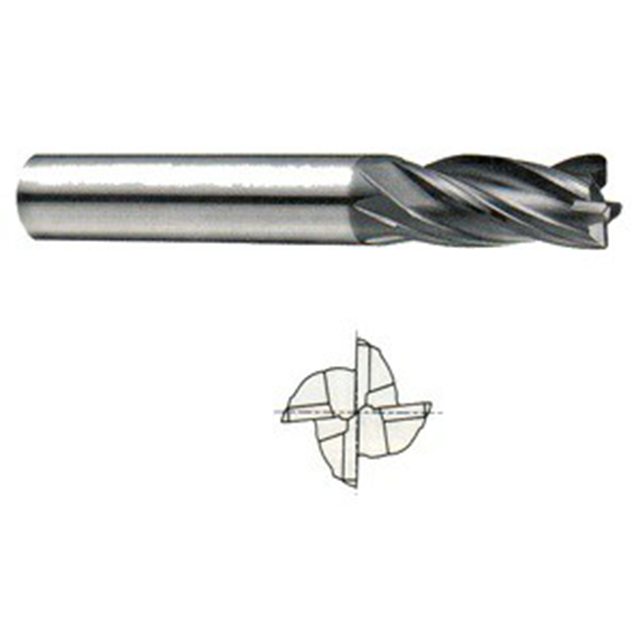

| Manufacturer Part Number | EMD46020 |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (mm) | 20.64mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Chamfer Size (Inch) | 1/200" |
| Chamfer Size (Decimal Inch) | 0.0050" |
| Chamfer Size (mm) | 0.13mm |
| Number of Flutes | 4 |
| Series | EMD46 |
| Shank Style | Plain |
| Helix Angle | Multiple |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center |
| Type | High Performance |
| Application | P,M,K |
| Cutting Direction | Right |
