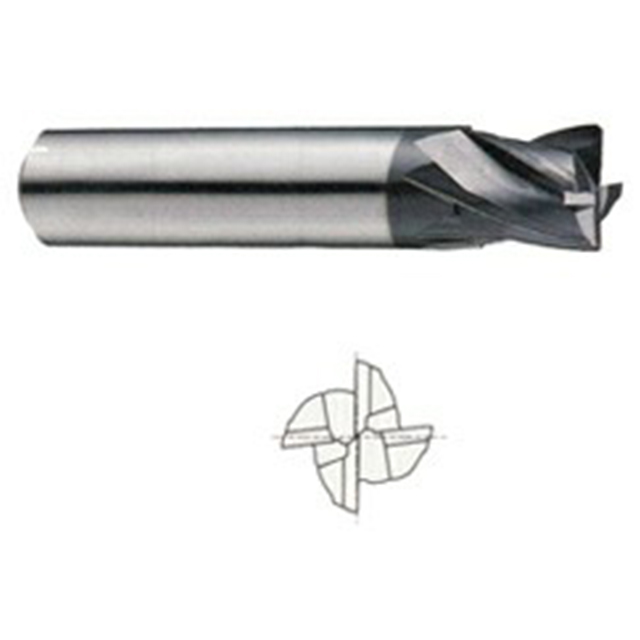

| Manufacturer Part Number | EMD56016 |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (Decimal Inch) | 0.2500" |
| Length of Cut (mm) | 6.35mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Chamfer Size (Inch) | 1/200" |
| Chamfer Size (Decimal Inch) | 0.0050" |
| Chamfer Size (mm) | 0.13mm |
| Number of Flutes | 4 |
| Series | EMD56 |
| Shank Style | Plain |
| Coating | AlTiN |
| Application | P,M,K |
| Cutting Direction | Right |
