Features

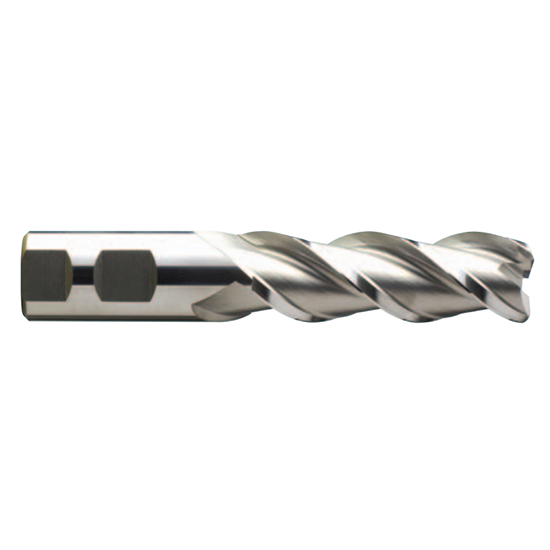

- High performance metal removal in aluminum alloys.
- Corner radius against chipping
- Increased tool life and superior chip evacuation
- Mill Diameter Tolerance: 0-.0010"; Shank Diameter Tolerance: 0-.0015"
Product Specifications
| Brand | YG1 |
| Milling Diameter (Inch) | 1" |
| Shank Diameter (Inch) | 1" |
| Length of Cut (Inch) | 2" |
| Overall Length (Inch) | 4-1/2" |
| Number of Flutes | 3 |
| Finish/Coating | TiCN |
| Tool Material | T15 |
| Center Cutting | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | EP10641C |
| Helix Angle | 42 Degree |
| Tolerance-Cutting Diameter | 0-.0010" |
| Tolerance-Shank Diameter | 0-.0015" |
| Length Type | Standard |
| Through Coolant | No |
| Shank Style | Straight |
| Series | EK193 |
| Country of Origin | Korea |
| End Type | Flat |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1"
Shank Diameter (Inch):
1"
Length of Cut (Inch):
2"
Overall Length (Inch):
4-1/2"
Number of Flutes:
3
Finish/Coating:
TiCN
Tool Material:
T15
Center Cutting:
Yes
End Type:
Square
