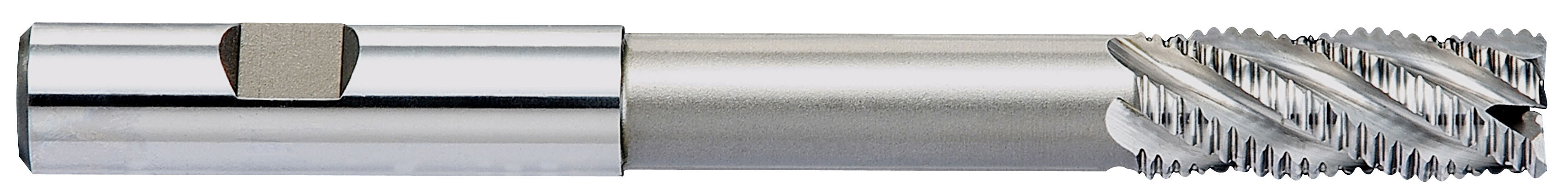

Product Specifications
| # Manufacturer Number | EP20643F |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 8.5000" |
| Overall Length (Inch) | 8-1/2" |
| Overall Length (mm) | 215.90mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| LBS (Decimal Inch) | 6.0000" |
| LBS (Inch) | 6" |
| LBS (mm) | 152.40mm |
| Helix Angle (Degree) | 35 Degree |
| Number of Flute | 6 |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9921 |
| Cutting Direction | Right |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
6
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.80mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Material:
Premium HSS-PM
Finish/Coating:
TiAlN
Overall Length (Inch):
8-1/2"
Overall Length (Decimal Inch):
8.5000"
Overall Length (mm):
215.90mm
Center Cutting (yes/no):
Yes
