Product Specifications
| # Manufacturer Number | F0426 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (mm) | 10.00mm |
| Pitch | 1.5 TPI |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.68mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.5120" |
| Thread Length (mm) | 13.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.3100" |
| Neck Diameter (mm) | 0.00mm |
| Useable Length (Decimal Inch) | 1.2520" |
| Useable Length (mm) | 31.80mm |
| Drill Size (Decimal Inch) | 0.3400" |
| Drill Size (mm) | 8.64mm |
| Pitch Limit | D6 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Oxide |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

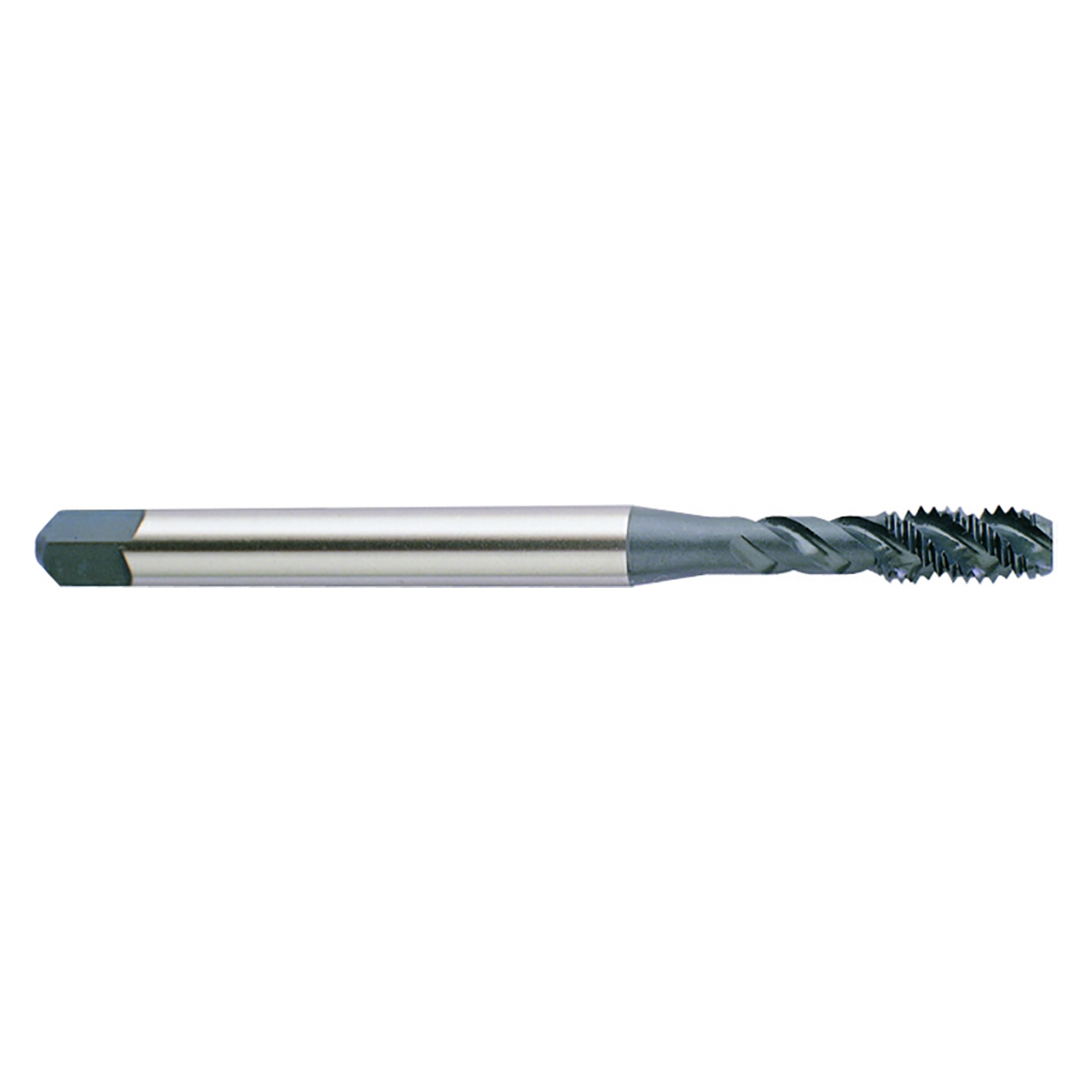

| Product Type | Spiral Flute Thread Tap |
