| Manufacturer Part Number | F2203 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (mm) | 3.00mm |
| Thread Size | M3 |
| Pitch | 0.5 TPI |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 2.2050" |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.1970" |
| Thread Length (mm) | 5.00mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0900" |
| Neck Diameter (mm) | 2.29mm |
| Useable Length (Decimal Inch) | 0.6460" |
| Useable Length (mm) | 16.41mm |
| Drill Size (Decimal Inch) | 0.1002" |
| Drill Size (mm) | 2.55mm |
| Number of Flutes | 2 |
| Pitch Limit | D3 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | TiCN |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

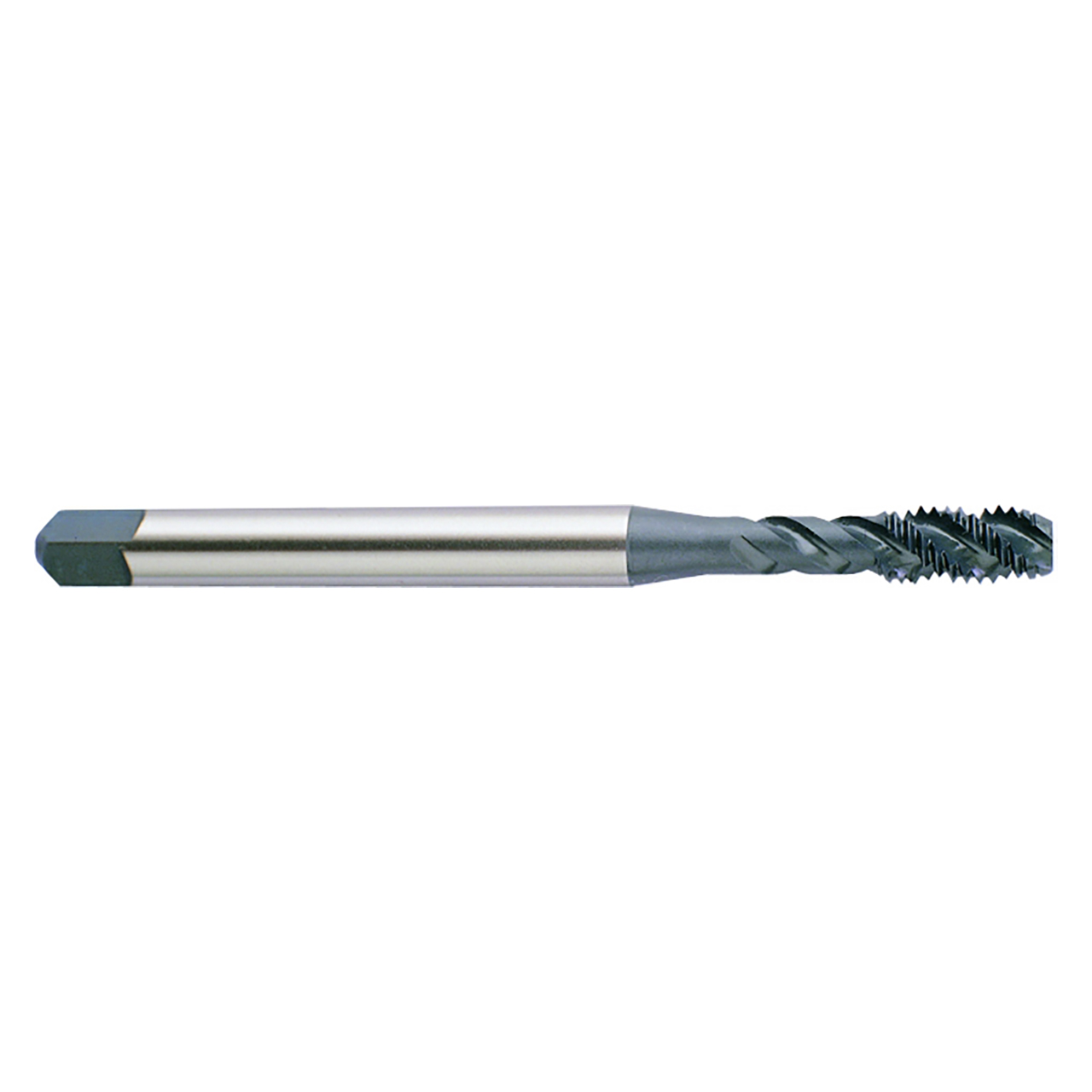

| Product Type | Spiral Flute Thread Tap |
