| Manufacturer Part Number | G0766 |
| Size & Pitch | 7/8-14 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 4.9210" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 124.99mm |
| Thread Length (Decimal Inch) | 0.7100" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Neck Diameter (mm) | 17.40mm |
| Drill Size (Decimal Inch) | 0.8101" |
| Drill Size (mm) | 20.58mm |
| Useable Length (mm) | 71.50mm |
| Useable Length (Decimal Inch) | 2.8150" |
| Connection (Decimal Inch) | 0.697 x 0.523" |
| Connection (mm) | 17.7 x 13.28mm |
| Series | G0 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.6850" |
| Chamfer Length | 2P-3P |
| Thread Series | UNF |
| Pitch Limit | H6 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | Bright |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 4 |
| Material | HSS-V |

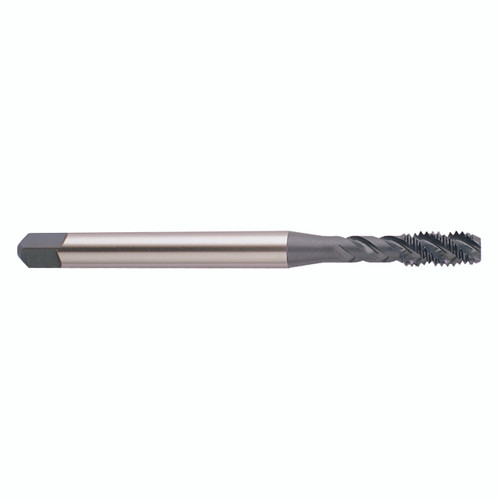

| Product Type | Spiral Flute Bottom Tap |
