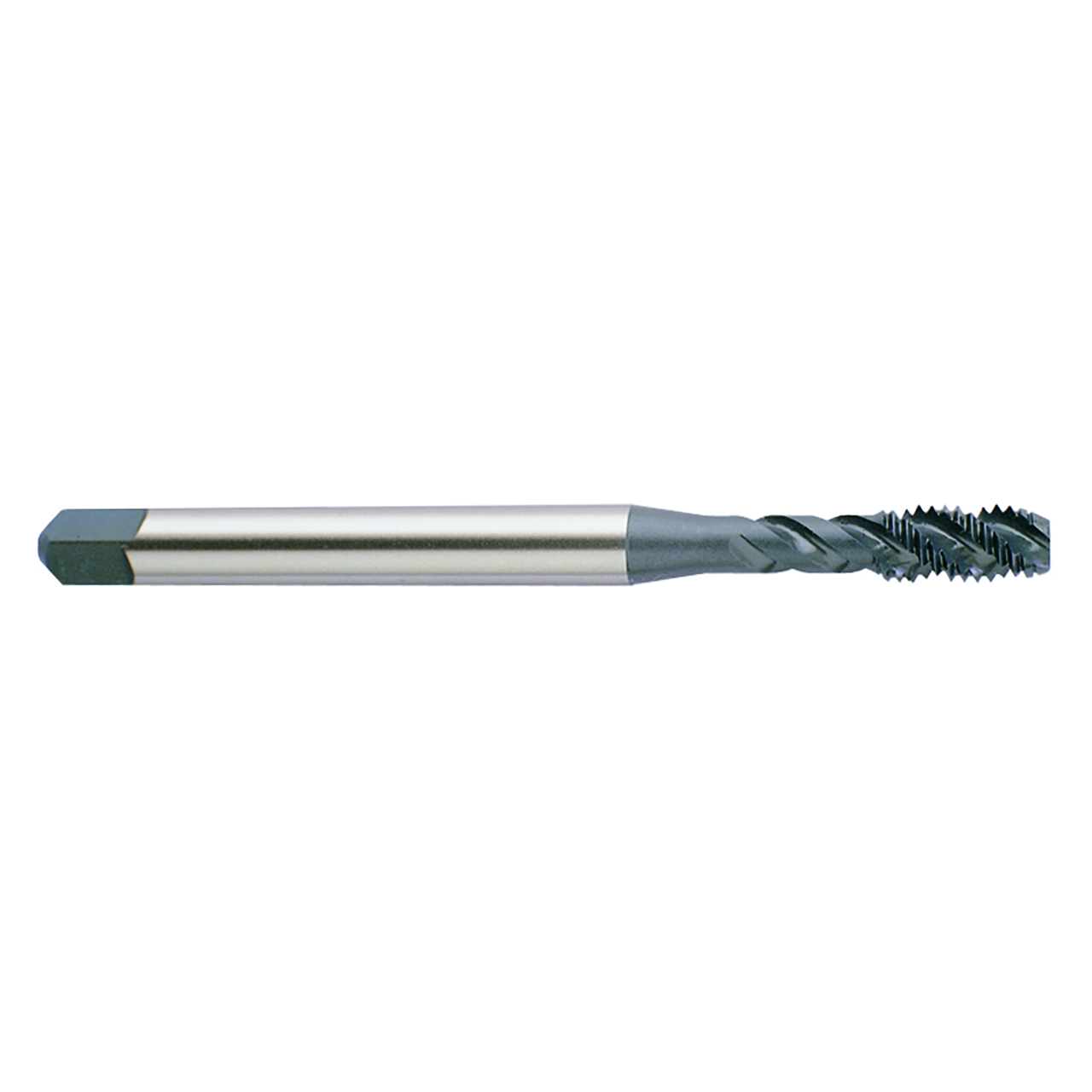

Product Specifications
| EDP Number | G2705 |
| Size & Pitch | 3/4-10 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 4.9210" |
| Length/Diameter | 2.5 x D |
| Coolant Through | No |
| Overall Length (mm) | 124.99mm |
| Thread Length (Decimal Inch) | 0.8300" |
| Thread Length (mm) | 21.01mm |
| Square Length (Decimal Inch) | 0.6900" |
| Square Length (mm) | 17.53mm |
| Shank Diameter (Decimal Inch) | 0.5900" |
| Shank Diameter (mm) | 14.99mm |
| Square Size (Decimal Inch) | 0.4420" |
| Square Size (mm) | 11.23mm |
| Neck Diameter (mm) | 14.66mm |
| Drill Size (Decimal Inch) | 0.6591" |
| Drill Size (mm) | 16.74mm |
| Useable Length (mm) | 62.99mm |
| Useable Length (Decimal Inch) | 2.4800" |
| Connection (Decimal Inch) | 0.59 x 0.442" |
| Connection (mm) | 14.99 x 11.23mm |
| Series | G2 |
| Chamfer Type | Modified Bottoming |
| Neck Diameter (Decimal Inch) | 0.5770" |
| Chamfer Length | 2P-3P |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 45 Degree |
| Finish | Hardslick |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPFL |
| Number of Flute | 4 |
| Material | HSS-V |
| Product Type | Spiral Flute Bottom Tap |
