Product Specifications
| Manufacturer Part Number | G8403 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Thread Length (Decimal Inch) | 0.4330" |
| Thread Length (mm) | 11.00mm |
| Square Length (Decimal Inch) | 0.3100" |
| Square Length (mm) | 7.87mm |
| Shank Diameter (Decimal Inch) | 0.2550" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.1910" |
| Square Size (mm) | 4.85mm |
| Neck Diameter (Decimal Inch) | 0.1800" |
| Neck Diameter (mm) | 4.57mm |
| Drill Size (Decimal Inch) | 0.2045" |
| Drill Size (mm) | 5.20mm |
| Useable Length (Decimal Inch) | 1.0000" |
| Useable Length (mm) | 25.40mm |
| Thread Diameter (Inch) | 1/4" |
| Threads Per Inch | 20 TPI |
| Number of Flutes | 3 |
| Pitch Limit | H3 |
| Series | G8 |
| Helix Angle | 45 Degree |
| Thread Series | UNC |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | TIN |
| Material | P-HSS |
| Blank Standard | 302A |
| Length/Diameter | 2.5xD |
| Shank Type | Square |

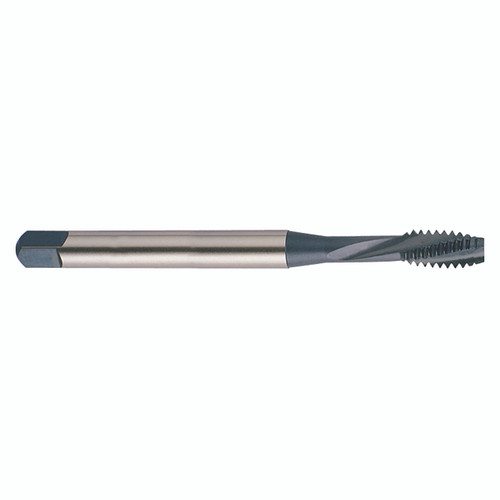

| Tap Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
1/4"
Thread Size (Decimal Inch):
0.2500"
Thread Size (mm):
6.35mm
Thread Limit:
H3
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
P-HSS
Coating:
TIN
Threads per Inch (TPI):
20 TPI
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
