Product Specifications
| Manufacturer Part Number | G8483 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Thread Length (Decimal Inch) | 0.5510" |
| Thread Length (mm) | 14.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.68mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.2870" |
| Neck Diameter (mm) | 7.29mm |
| Drill Size (Decimal Inch) | 0.3182" |
| Drill Size (mm) | 8.08mm |
| Useable Length (Decimal Inch) | 1.2520" |
| Useable Length (mm) | 31.80mm |
| Thread Diameter (Inch) | 3/8" |
| Threads Per Inch | 16 TPI |
| Number of Flutes | 3 |
| Pitch Limit | H3 |
| Series | G8 |
| Helix Angle | 45 Degree |
| Thread Series | UNC |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | TIN |
| Material | P-HSS |
| Blank Standard | 302A |
| Length/Diameter | 2.5xD |
| Shank Type | Square |

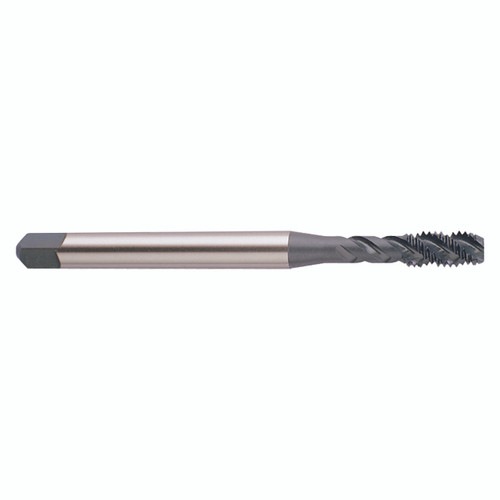

| Tap Type | Spiral Flute Tap |
