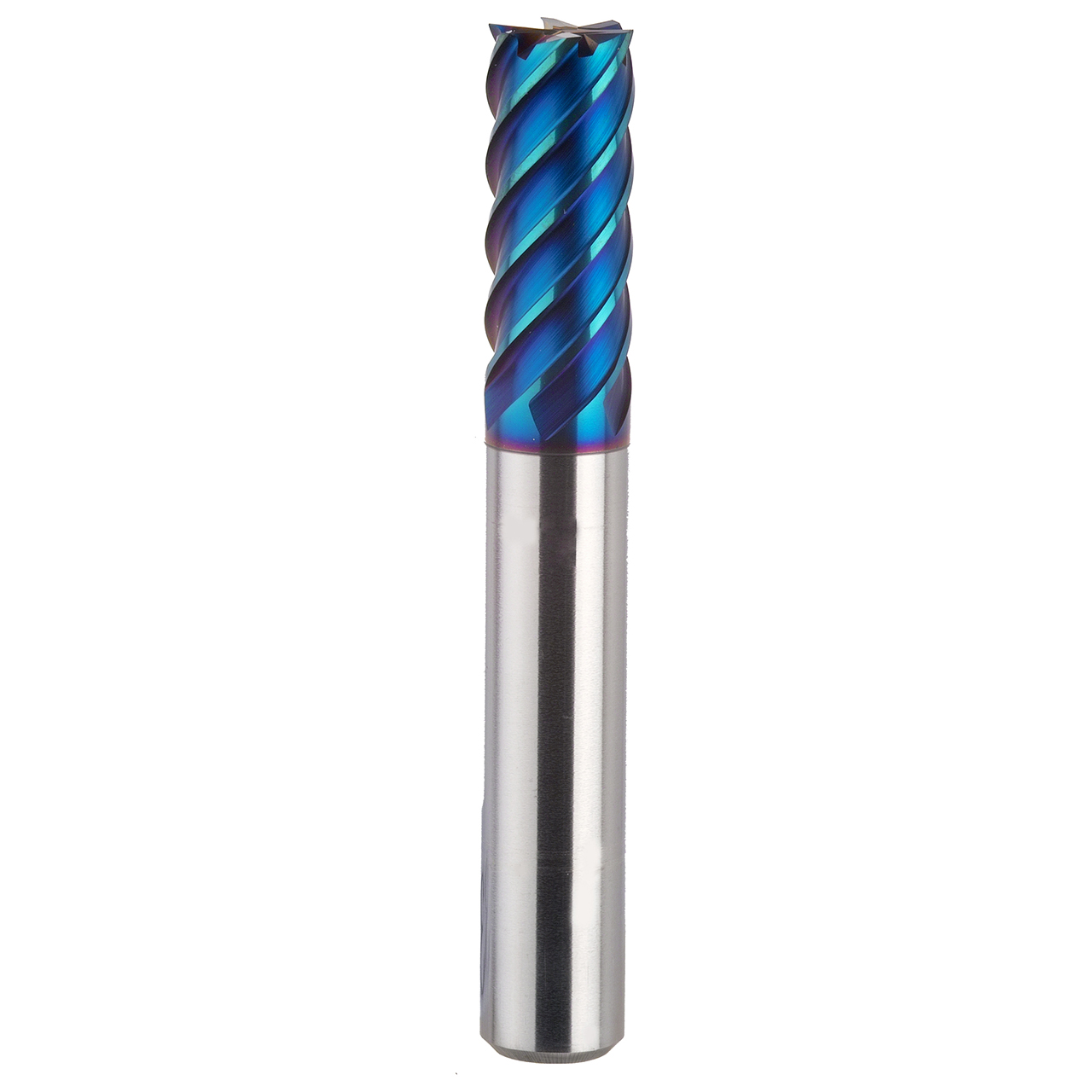

| Manufacturer Part Number | G85141 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (Inch) | 1 1/4" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 3.6250" |
| Overall-Length-(Inch) | 3-5/8" |
| Overall Length (mm) | 92.08mm |
| Corner Radius (Decimal Inch) | 0.0600" |
| Corner Radius (Inch) | 3/50" |
| Corner Radius (mm) | 1.52mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flute | 6 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |
| Product Type | Corner Radius End Mill |
