Product Specifications
| # Manufacturer Number | G854102 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (Inch) | 37/94" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.1575" |
| Length of Cut (Inch) | 3/19" |
| Length of Cut (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall-Length-(Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Corner Radius (Decimal Inch) | 0.0787" |
| Corner Radius (Inch) | 3/38" |
| Corner Radius (mm) | 2.00mm |
| LBS (Decimal Inch) | 0.7874" |
| LBS-(Inch) | 37/47" |
| LBS (mm) | 20.00mm |
| Neck (Decimal Inch) | 0.3543" |
| Neck (Inch) | 28/79" |
| Neck (mm) | 9.00mm |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

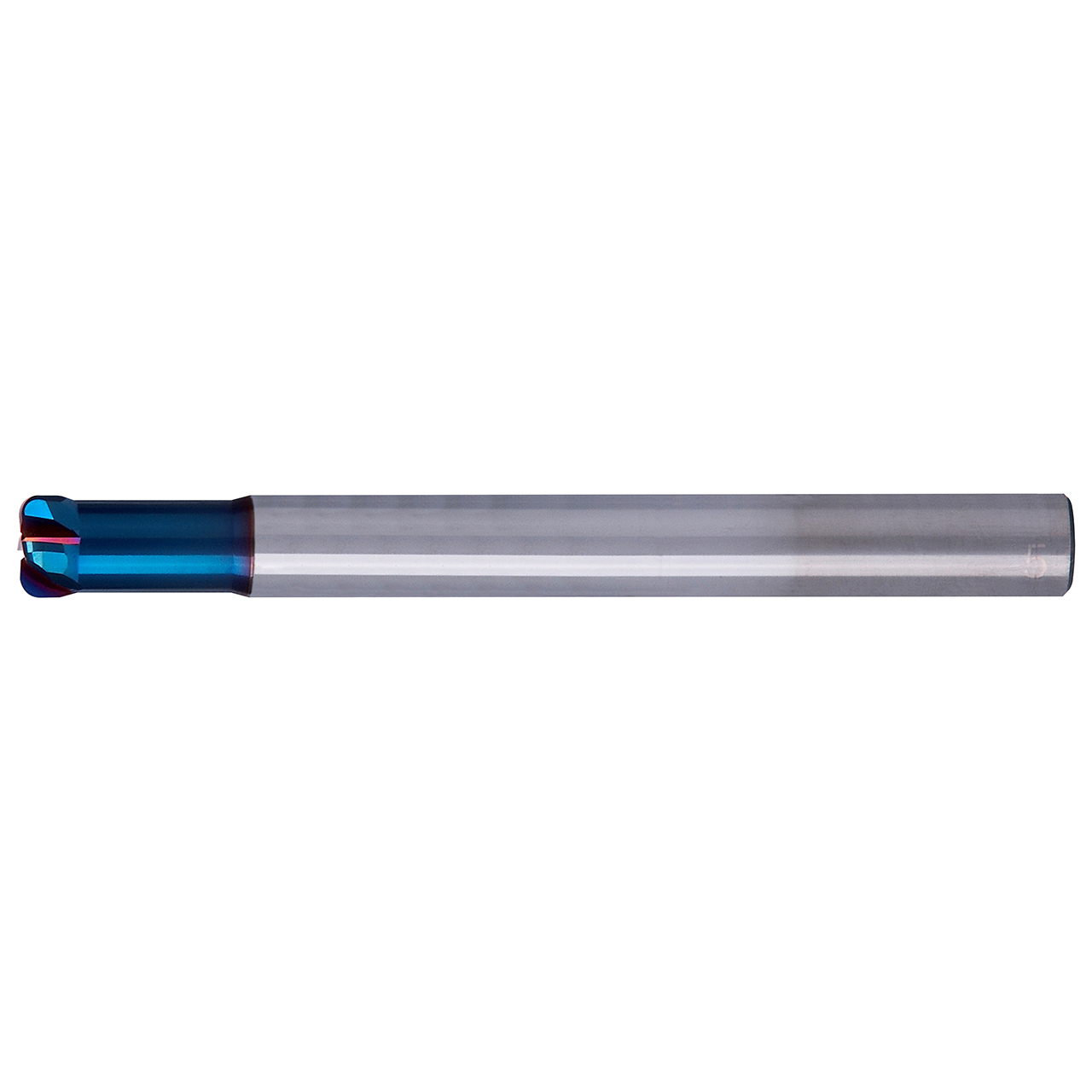

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
37/94"
Mill Diameter (Decimal Inch):
0.3937"
Mill Diameter (mm):
10.00mm
Number of Flutes:
4
Corner Radius (Inch):
3/38"
Corner Radius (Decimal Inch):
0.0787"
Corner Radius (mm):
2.00mm
Length of Cut (Inch):
3/19"
Length of Cut (Decimal Inch):
0.1575"
Length of Cut (mm):
4.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
37/94"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Application:
P,H
Overall Length (Inch):
3 15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Cutting Direction:
Right
