| Manufacturer Part Number | G8A28030 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1575" |
| Length of Cut (Inch) | 3/19" |
| Length of Cut (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall-Length-(Inch) | 2-25/69" |
| Overall Length (mm) | 60.00mm |
| LBS (Decimal Inch) | 0.3937" |
| LBS-(Inch) | 37/94" |
| LBS (mm) | 10.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0591" |
| Ball Nose Radius (Inch) | 1/17" |
| Ball Nose Radius (mm) | 1.50mm |
| Neck (Decimal Inch) | 0.1122" |
| Neck (Inch) | 11/98" |
| Neck (mm) | 2.85mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

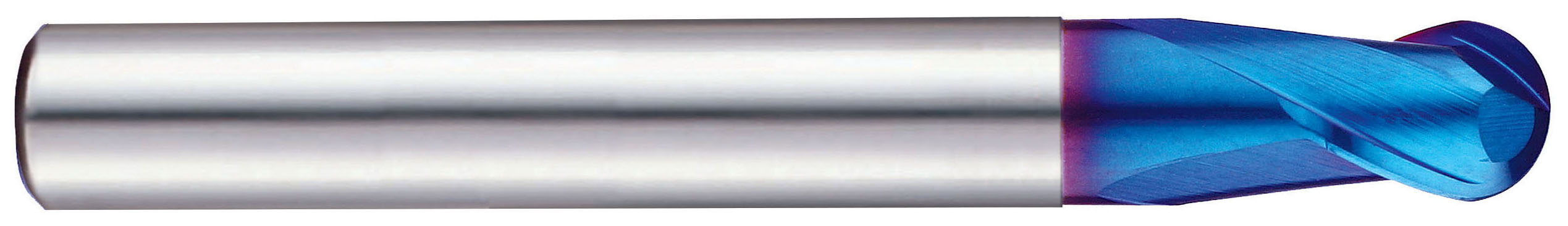

| Product Type | Ball Nose End Mill |
