| Manufacturer Part Number | G8A36908 |
| Diameter (Decimal Inch) | 0.0236" |
| Diameter (Inch) | 2/85" |
| Diameter (mm) | 0.60mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0472" |
| Length of Cut (Inch) | 1/21" |
| Length of Cut (mm) | 1.20mm |
| Overall Length (Decimal Inch) | 1.5748" |
| Overall-Length-(Inch) | 1-23/40" |
| Overall Length (mm) | 40.00mm |
| Corner Radius (Decimal Inch) | 0.0020" |
| Corner Radius (Inch) | 1/508" |
| Corner Radius (mm) | 0.05mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

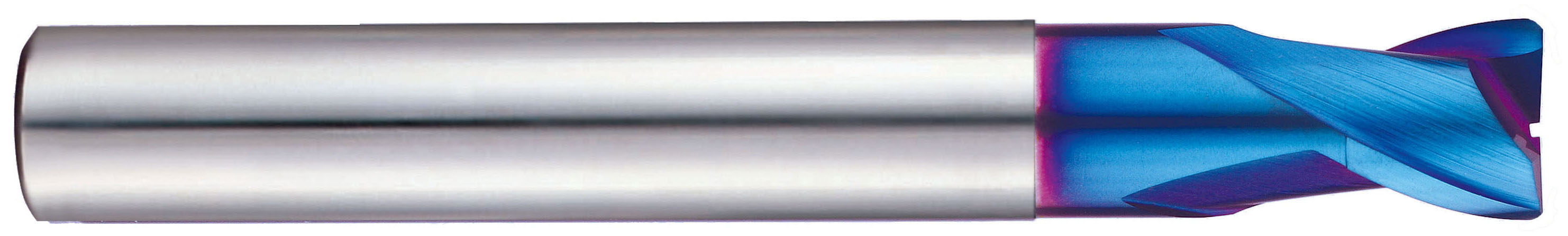

| Product Type | Corner Radius End Mill |
