| Manufacturer Part Number | G8A38070 |
| Diameter (Decimal Inch) | 0.2756" |
| Diameter (Inch) | 8/29" |
| Diameter (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.2756" |
| Length of Cut (Inch) | 8/29" |
| Length of Cut (mm) | 7.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall-Length-(Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| LBS (Decimal Inch) | 0.5512" |
| LBS-(Inch) | 43/78" |
| LBS (mm) | 14.00mm |
| Ball Nose Radius (Decimal Inch) | 0.1378" |
| Ball Nose Radius (Inch) | 4/29" |
| Ball Nose Radius (mm) | 3.50mm |
| Neck (Decimal Inch) | 0.2638" |
| Neck (Inch) | 24/91" |
| Neck (mm) | 6.70mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

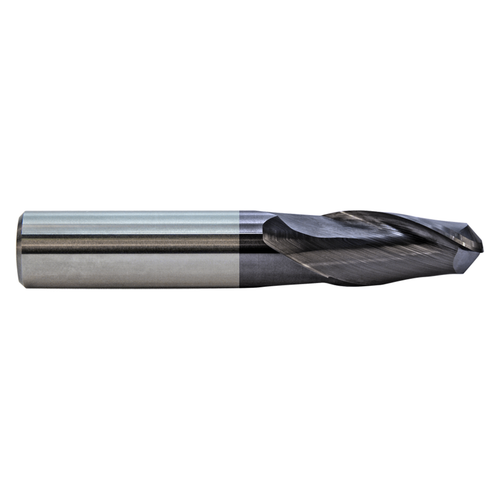

| Product Type | Ball Nose End Mill |
