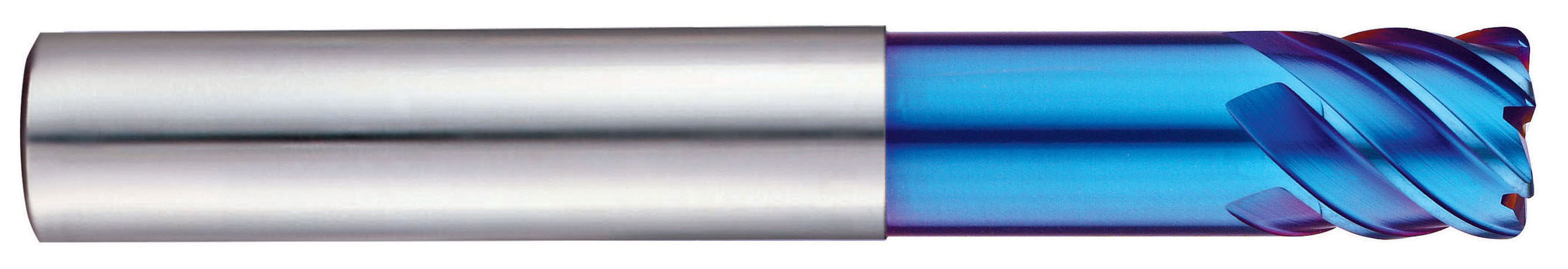

Product Specifications
| # Manufacturer Number | G8A39913 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 2.2047" |
| Length of Cut (Inch) | 2 17/83" |
| Length of Cut (mm) | 56.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall-Length-(Inch) | 4-1/3" |
| Overall Length (mm) | 110.00mm |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (Inch) | 3/76" |
| Corner Radius (mm) | 1.00mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flute | 6 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
43/91"
Mill Diameter (Decimal Inch):
0.4724"
Mill Diameter (mm):
12.00mm
Number of Flutes:
6
Corner Radius (Inch):
3/76"
Corner Radius (Decimal Inch):
0.0394"
Corner Radius (mm):
1.00mm
Length of Cut (Inch):
2 17/83"
Length of Cut (Decimal Inch):
2.2047"
Length of Cut (mm):
56.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
43/91"
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Application:
P,H
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3307"
Overall Length (mm):
110.00mm
Cutting Direction:
Right
