Product Specifications
| # Manufacturer Number | G8A43008 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.1250" |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| LBS (Decimal Inch) | 0.2500" |
| LBS-(Inch) | 1/4" |
| LBS (mm) | 6.40mm |
| Ball Nose Radius (Decimal Inch) | 0.0625" |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (mm) | 1.59mm |
| Neck (Decimal Inch) | 0.1210" |
| Neck (Inch) | 4/33" |
| Neck (mm) | 3.07mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

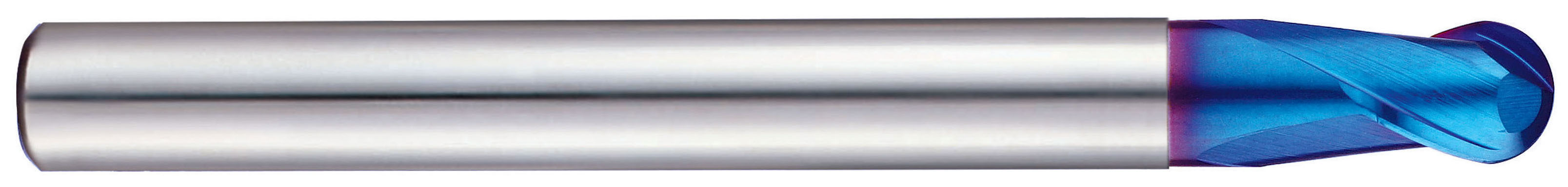

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
2
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Blue
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Yes
Application:
P,H
