| Manufacturer Part Number | G8A46984 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.0945" |
| Length of Cut (Inch) | 5/53" |
| Length of Cut (mm) | 2.40mm |
| Overall Length (Decimal Inch) | 2.1654" |
| Overall-Length-(Inch) | 2-1/6" |
| Overall Length (mm) | 55.00mm |
| LBS (Decimal Inch) | 0.5512" |
| LBS-(Inch) | 43/78" |
| LBS (mm) | 14.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0591" |
| Ball Nose Radius (Inch) | 1/17" |
| Ball Nose Radius (mm) | 1.50mm |
| Neck (Decimal Inch) | 0.1122" |
| Neck (Inch) | 11/98" |
| Neck (mm) | 2.85mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

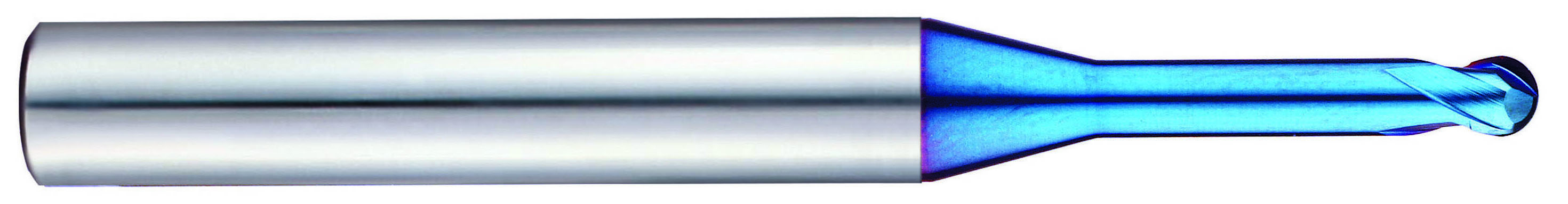

| Product Type | Ball Nose End Mill |
