Product Specifications
| # Manufacturer Number | G8A47060 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.2756" |
| Length of Cut (Inch) | 8/29" |
| Length of Cut (mm) | 7.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall-Length-(Inch) | 2-25/69" |
| Overall Length (mm) | 60.00mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (mm) | 0.50mm |
| LBS (Decimal Inch) | 0.7874" |
| LBS-(Inch) | 37/47" |
| LBS (mm) | 20.00mm |
| Neck (Decimal Inch) | 0.2303" |
| Neck (Inch) | 3/13" |
| Neck (mm) | 5.85mm |
| Helix Angle (Degree) | 4 Degree |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

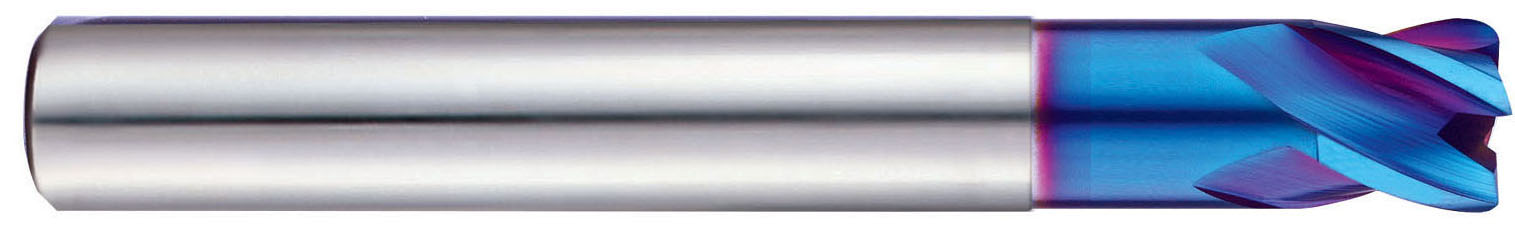

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
13/55"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
Number of Flutes:
4
Corner Radius (Inch):
1/51"
Corner Radius (Decimal Inch):
0.0197"
Corner Radius (mm):
0.50mm
Length of Cut (Inch):
8/29"
Length of Cut (Decimal Inch):
0.2756"
Length of Cut (mm):
7.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Application:
P,H
Overall Length (Inch):
2 25/69"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Cutting Direction:
Right
