Product Specifications
| # Manufacturer Number | G8A47922 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1969" |
| Length of Cut (Inch) | 12/61" |
| Length of Cut (mm) | 5.00mm |
| Overall Length (Decimal Inch) | 2.1654" |
| Overall-Length-(Inch) | 2-1/6" |
| Overall Length (mm) | 55.00mm |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (Inch) | 3/76" |
| Corner Radius (mm) | 1.00mm |
| LBS (Decimal Inch) | 0.4724" |
| LBS-(Inch) | 43/91" |
| LBS (mm) | 12.00mm |
| Neck (Decimal Inch) | 0.1516" |
| Neck (Inch) | 5/33" |
| Neck (mm) | 3.85mm |
| Helix Angle (Degree) | 4 Degree |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

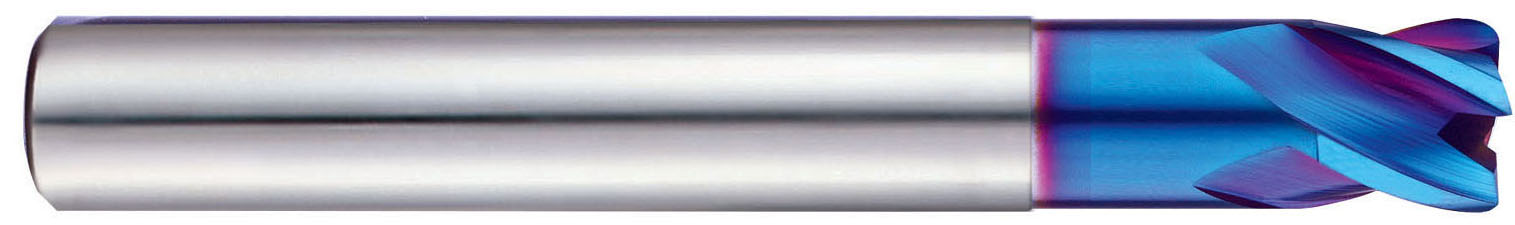

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/19"
Mill Diameter (Decimal Inch):
0.1575"
Mill Diameter (mm):
4.00mm
Number of Flutes:
4
Corner Radius (Inch):
3/76"
Corner Radius (Decimal Inch):
0.0394"
Corner Radius (mm):
1.00mm
Length of Cut (Inch):
12/61"
Length of Cut (Decimal Inch):
0.1969"
Length of Cut (mm):
5.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Application:
P,H
Overall Length (Inch):
2-1/6"
Overall Length (Decimal Inch):
2.1654"
Overall Length (mm):
55.00mm
Cutting Direction:
Right
