| Manufacturer Part Number | G8A54906 |
| Diameter (Decimal Inch) | 0.0472" |
| Diameter (Inch) | 1/21" |
| Diameter (mm) | 1.20mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.0472" |
| Length of Cut (Inch) | 1/21" |
| Length of Cut (mm) | 1.20mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall-Length-(Inch) | 1-31/32" |
| Overall Length (mm) | 50.00mm |
| LBS (Decimal Inch) | 0.3150" |
| LBS-(Inch) | 23/73" |
| LBS (mm) | 8.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0236" |
| Ball Nose Radius (Inch) | 2/85" |
| Ball Nose Radius (mm) | 0.60mm |
| Neck (Decimal Inch) | 0.0453" |
| Neck (Inch) | 1/22" |
| Neck (mm) | 1.15mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

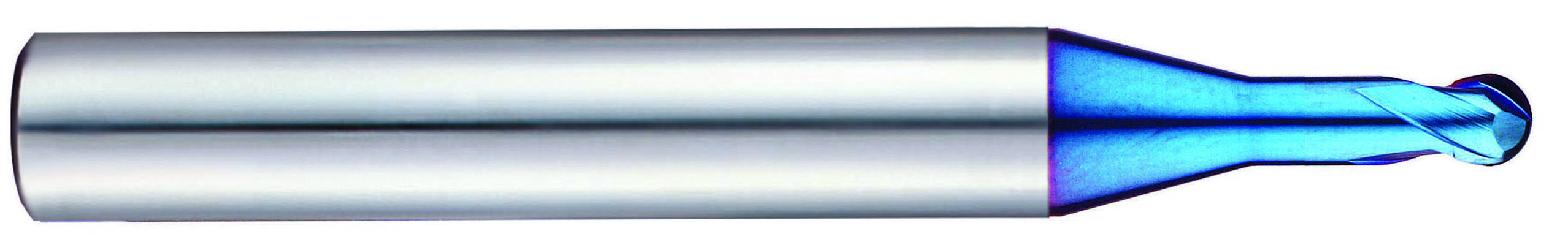

| Product Type | Ball Nose End Mill |
