Product Specifications
| EDP Number | G90932 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| LBS (Decimal Inch) | 1.2500" |
| LBS (Inch) | 1-1/4" |
| LBS (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 3.2500" |
| Overall Length (Inch) | 3-1/4" |
| Overall Length (mm) | 82.55mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (mm) | 0.51mm |
| Number of Flutes | 4 |
| Series | G909 |
| Shank Style | Plain |
| Helix Angle | Multi Helix |
| Coating | Y Coated |
| Material | Carbide |
| Cut Type | Center |
| Corner Type | Corner Radius |

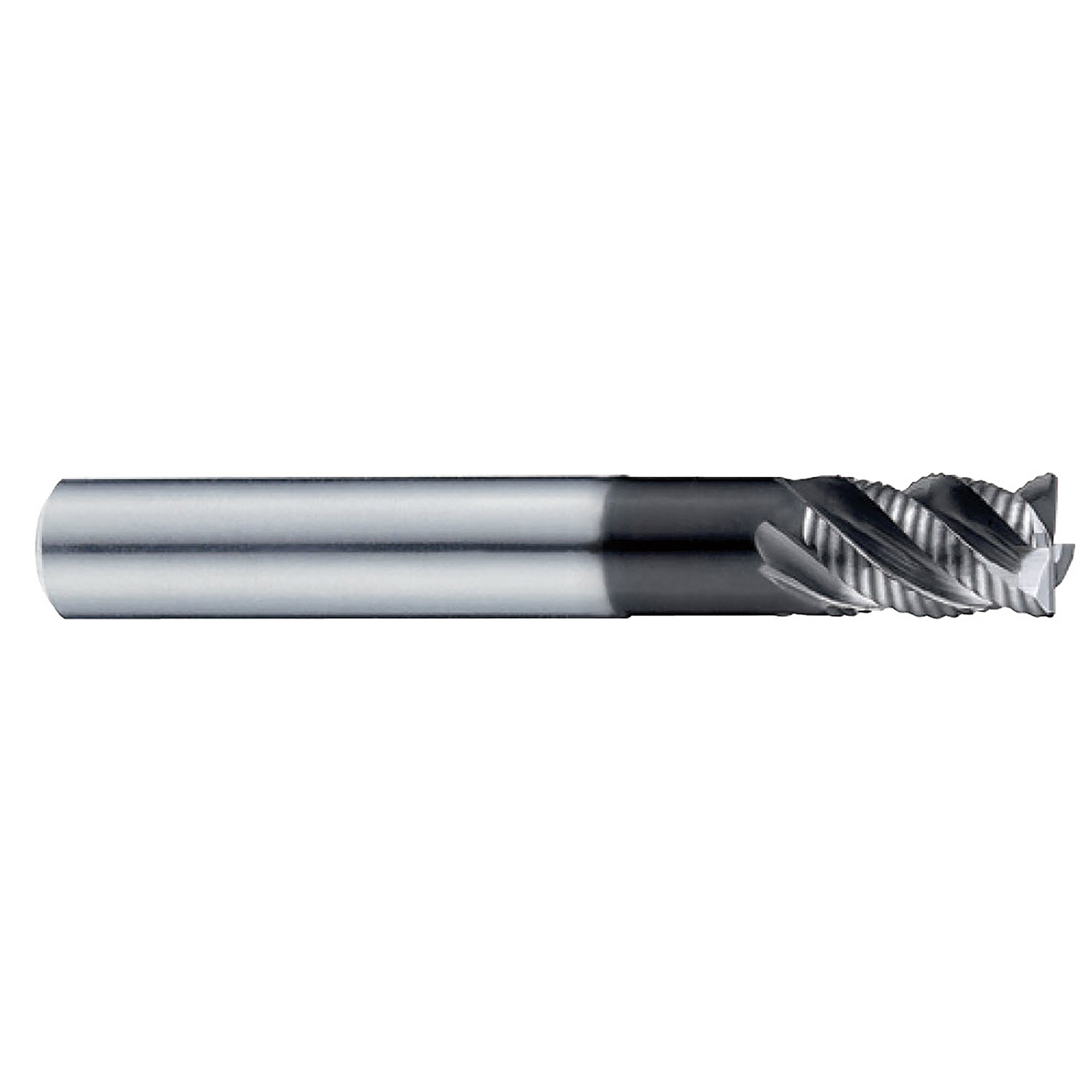

| Type | Roughing Corner Radius End Mill |
| Application | P,K |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
