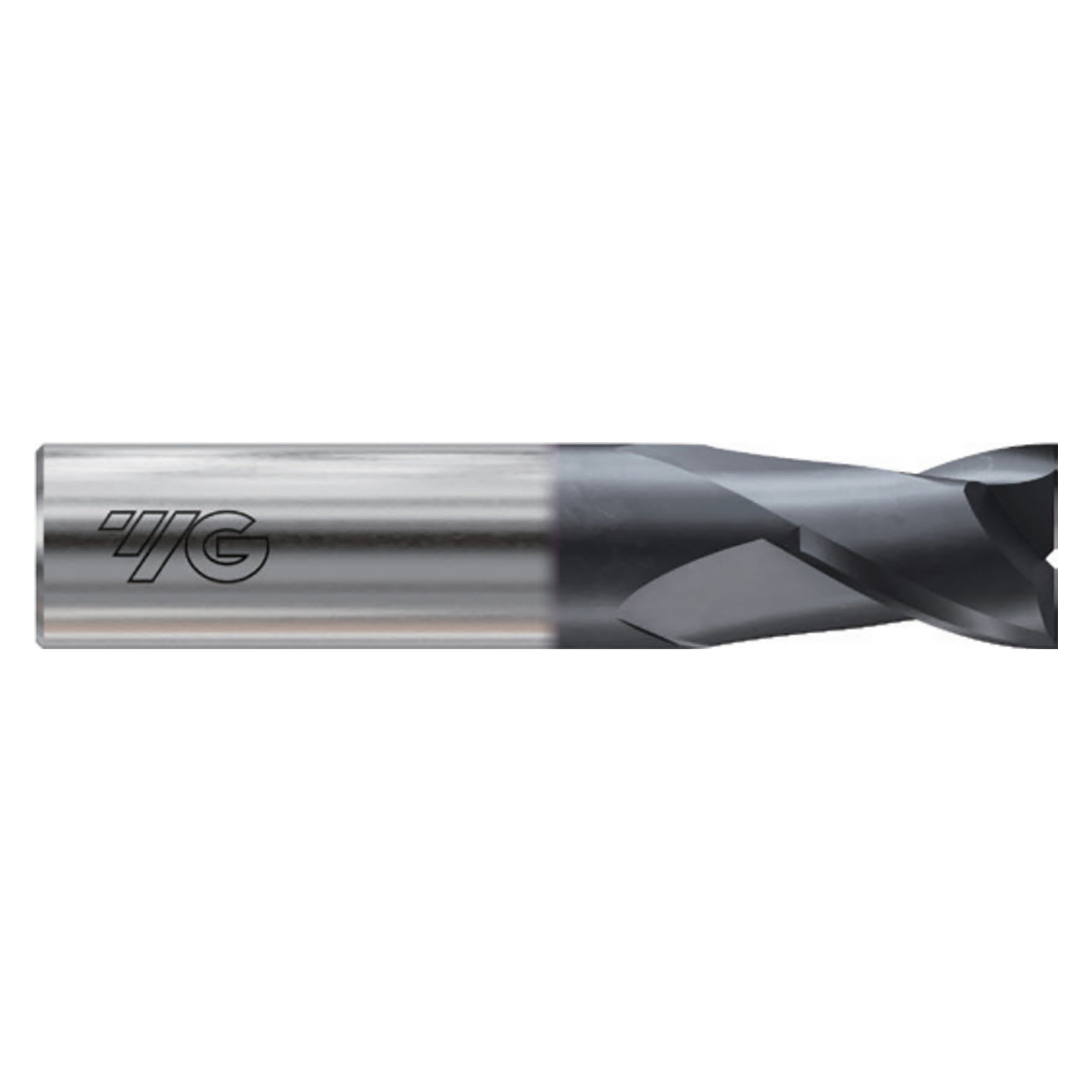

| Manufacturer Part Number | G9H80015N |
| Mill Diameter (Inch) | 15/64" |
| Mill Diameter (Decimal Inch) | 0.234" |
| Mill Diameter (mm) | 5.95mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 15/16" |
| Length of Cut (Decimal Inch) | 0.437" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Coating | X-Coated |
| Material | Carbide |
| Product Type | Square End Mill |
