| Manufacturer Part Number | G9H82010N |
| Mill Diameter (Inch) | 5/32" |
| Mill Diameter (Decimal Inch) | 0.156" |
| Mill Diameter (mm) | 3.97mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (Decimal Inch) | 0.312" |
| Length of Cut (mm) | 7.94mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 30 Degree |
| Coating | X-Coated |
| Material | Carbide |

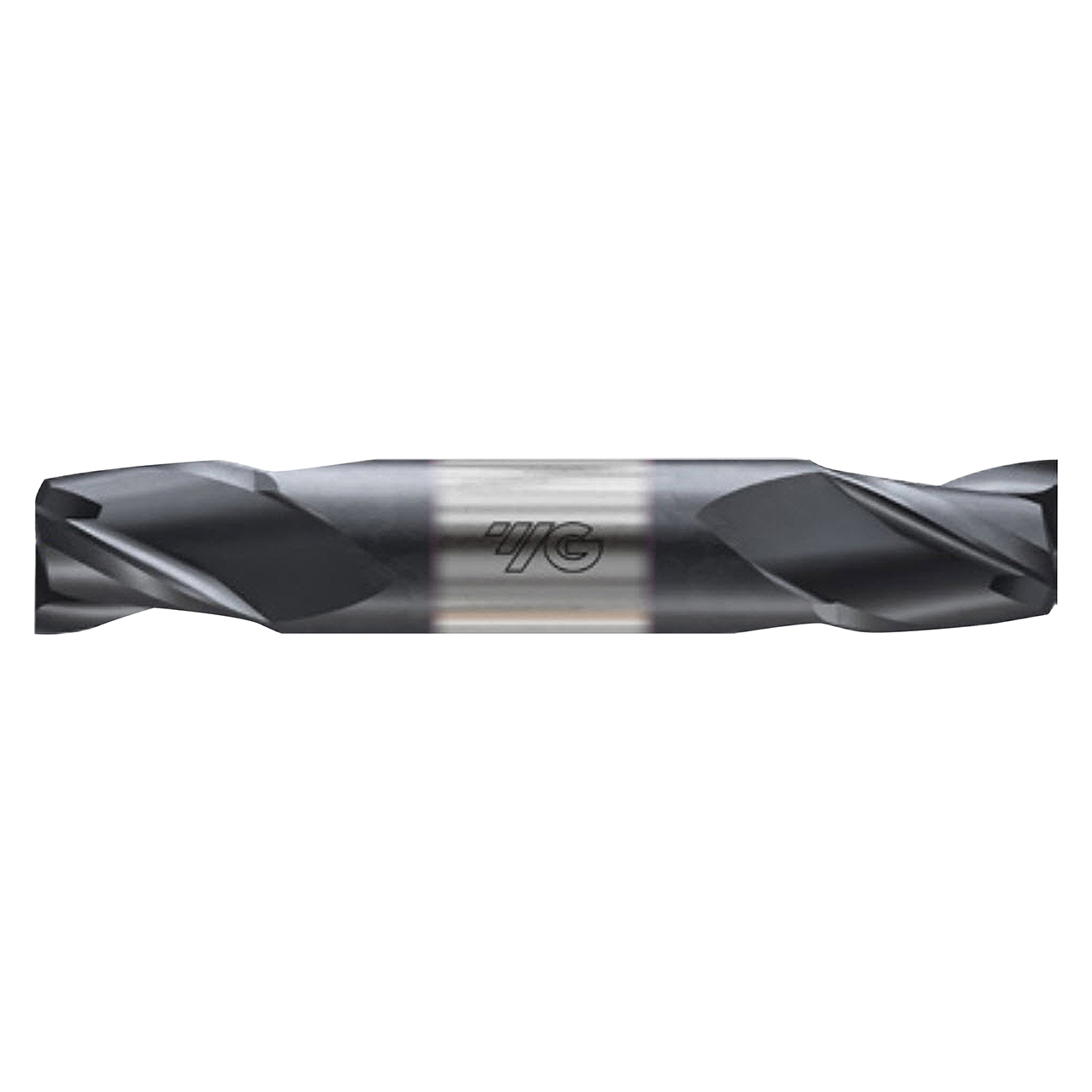

| Product Type | Double Ended Square End Mill |
