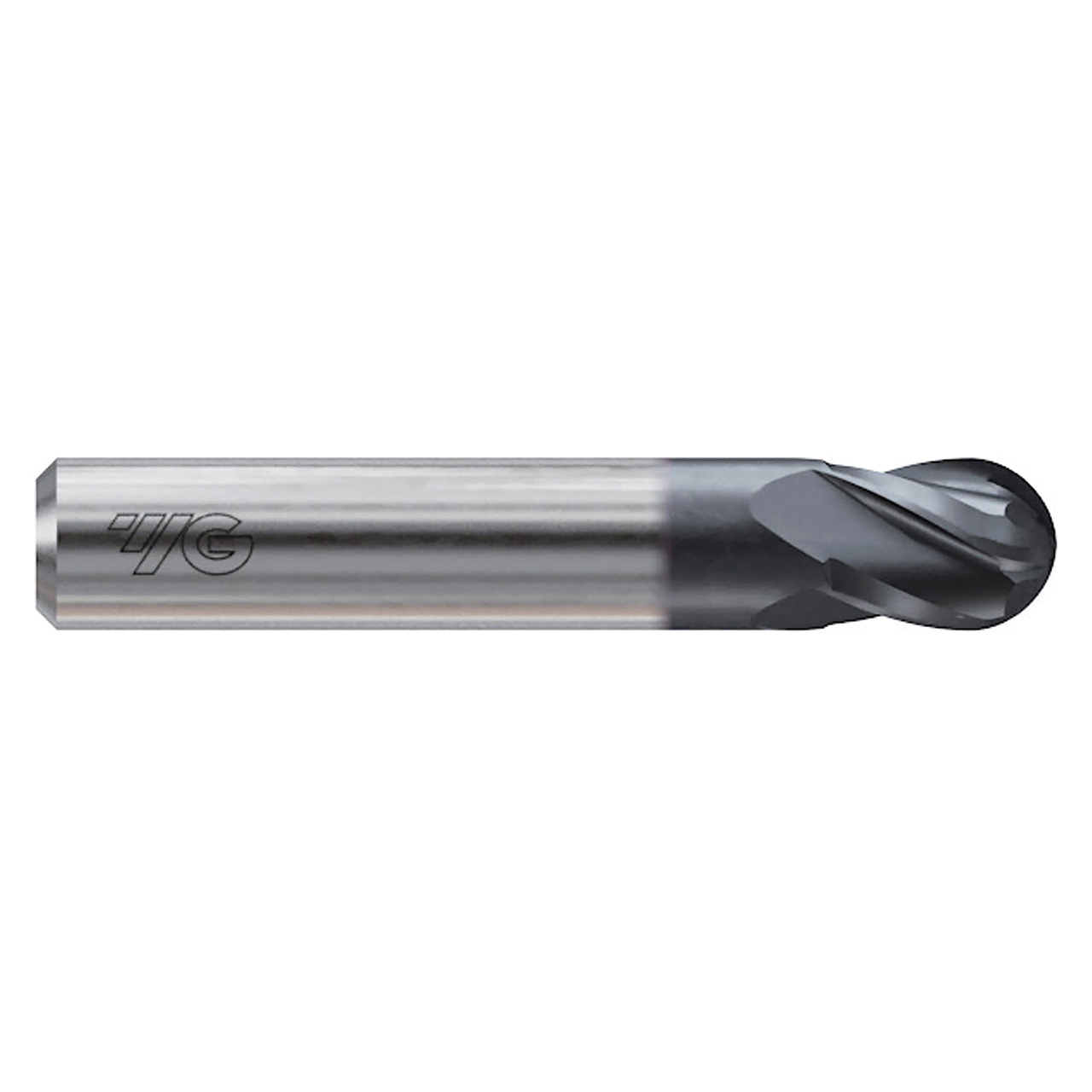

| Manufacturer Part Number | G9H99022N |
| Mill Diameter (Inch) | 11/32" |
| Mill Diameter (Decimal Inch) | 0.343" |
| Mill Diameter (mm) | 8.73mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (Decimal Inch) | 0.562" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Inch) | 11/64" |
| Ball Nose Radius (Decimal Inch) | 0.171" |
| Ball Nose Radius (mm) | 4.37mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | X-Coated |
| Material | Carbide |
| Product Type | Ball End Mill |
