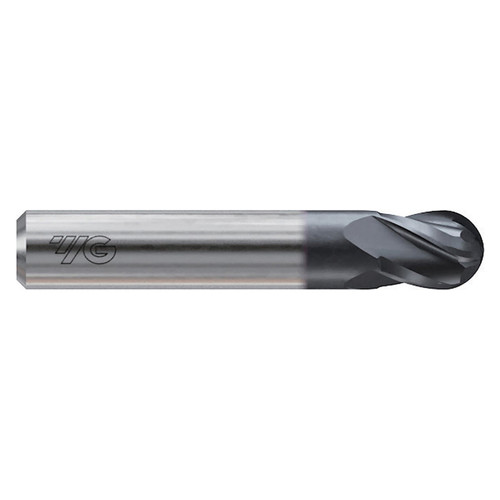

| Manufacturer Part Number | G9H99024N |
| Mill Diameter (Inch) | 3/8" |
| Mill Diameter (Decimal Inch) | 0.3750" |
| Mill Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Ball Nose (Decimal Inch) | 0.1875" |
| Ball Nose (Inch) | 3/16" |
| Ball Nose (mm) | 4.76mm |
| Helix | 30 Degree |
| Series | G9H99 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
