| Manufacturer Part Number | G9I01904N |
| Mill Diameter (Inch) | 13/64" |
| Mill Diameter (Decimal Inch) | 0.203" |
| Mill Diameter (mm) | 5.16mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.500" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Inch) | 7/69" |
| Ball Nose Radius (Decimal Inch) | 0.101" |
| Ball Nose Radius (mm) | 2.58mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | X-Coated |
| Material | Carbide |

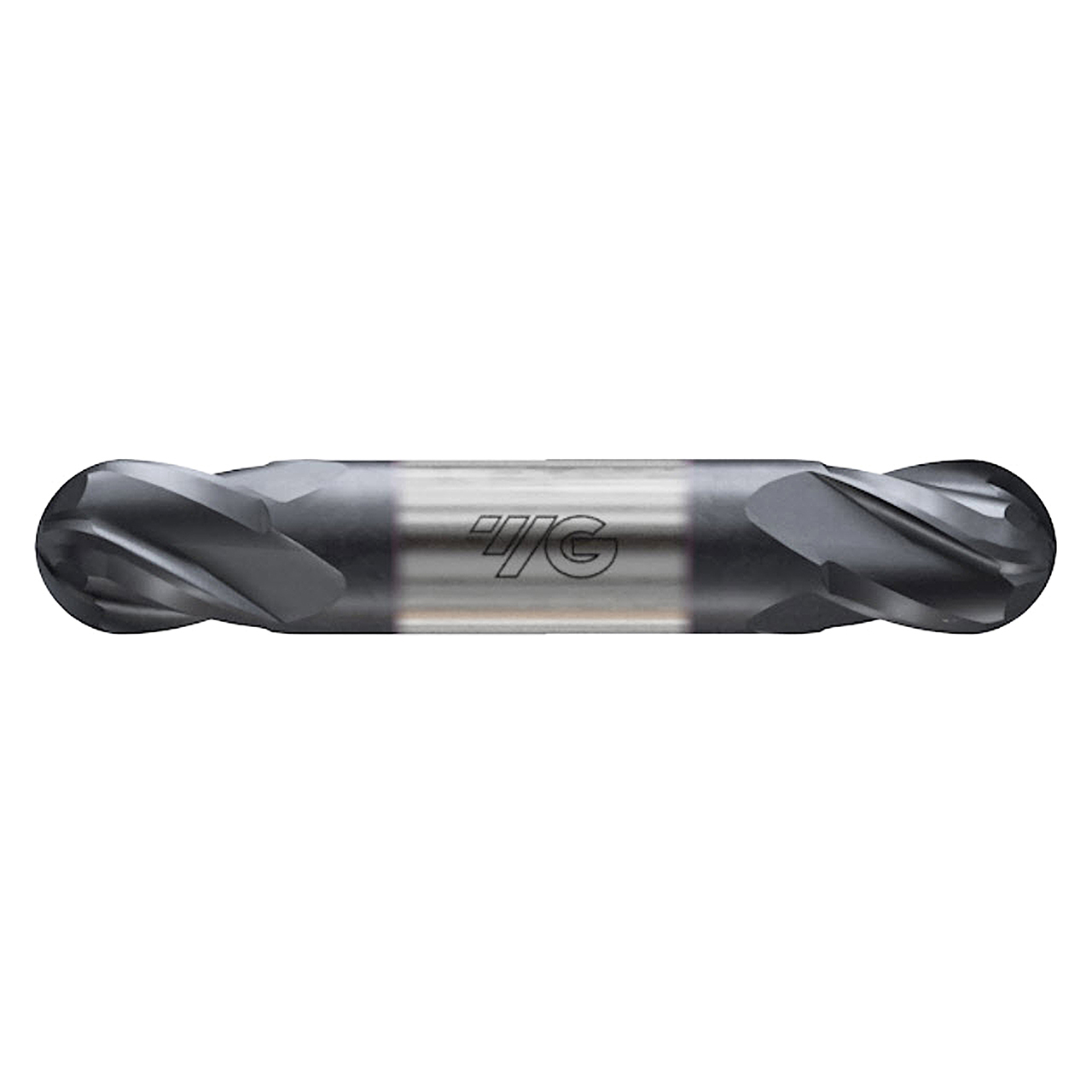

| Product Type | Double Ended Ball End Mill |
