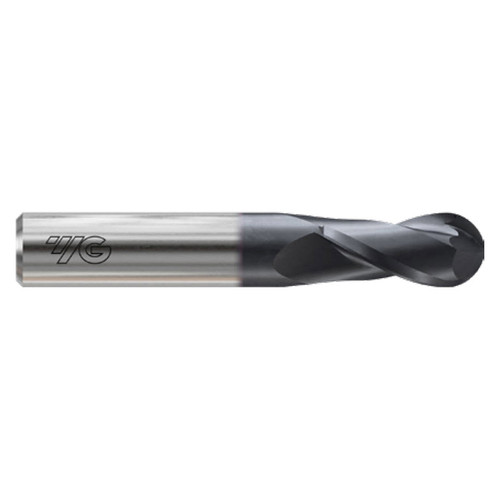

Product Specifications
| Manufacturer Part Number | G9I03015N |
| Mill Diameter (Inch) | 1/17" |
| Mill Diameter (Decimal Inch) | 0.0591" |
| Mill Diameter (mm) | 1.50mm |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Inch) | 12/61" |
| Length of Cut (Decimal Inch) | 0.1969" |
| Length of Cut (mm) | 5.00mm |
| Overall Length (Inch) | 1 15/28" |
| Overall Length (Decimal Inch) | 1.5354" |
| Overall Length (mm) | 39.00mm |
| Ball Nose (Decimal Inch) | 0.0197" |
| Ball Nose (Inch) | 5/254" |
| Ball Nose (mm) | 0.50mm |
| Helix | 30 Degree |
| Series | G9I03 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
YG1
Mill Diameter (Decimal Inch):
0.0591"
Mill Diameter (Inch):
1/17"
Mill Diameter (mm):
1.50mm
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (Inch):
2/17"
Shank Diameter (mm):
3.00mm
Length of Cut (Decimal Inch):
0.1969"
Length of Cut (Inch):
12/61"
Length of Cut (mm):
5.00mm
Overall Length (Decimal Inch):
1.5354"
Overall Length (Inch):
1-15/28"
Overall Length (mm):
39.00mm
Finish/Coating:
X-Coated
Material:
Carbide
Helix Angle:
30 Degree
Number of Flutes:
2
Shank Style:
Plain
interval quantity:
1
