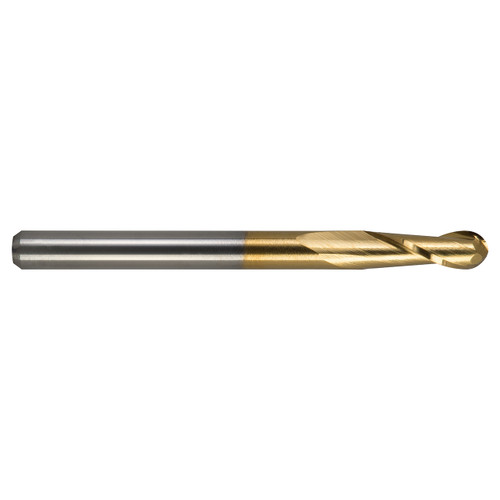

Product Specifications
| Manufacturer Part Number | G9I03040N |
| Mill Diameter (Inch) | 3/19" |
| Mill Diameter (Decimal Inch) | 0.1575" |
| Mill Diameter (mm) | 4.00mm |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 43/78" |
| Length of Cut (Decimal Inch) | 0.5512" |
| Length of Cut (mm) | 14.00mm |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0079" |
| Overall Length (mm) | 51.00mm |
| Ball Nose (Decimal Inch) | 0.0689" |
| Ball Nose (Inch) | 35/508" |
| Ball Nose (mm) | 1.75mm |
| Helix | 30 Degree |
| Series | G9I03 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
