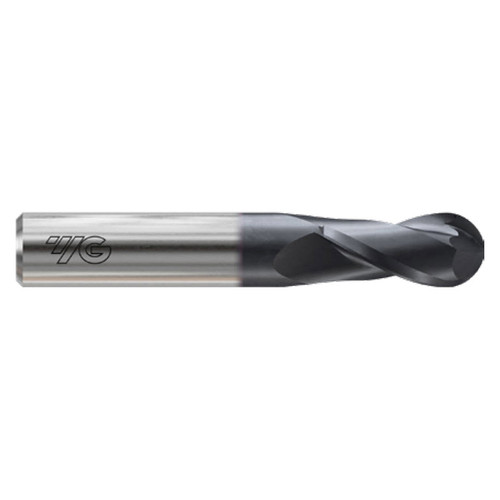

| Manufacturer Part Number | G9I03100N |
| Mill Diameter (Decimal Inch) | 0.3937" |
| Mill Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.8661" |
| Length of Cut (mm) | 22.00mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 2.9921" |
| Overall Length (mm) | 76.00mm |
| Ball Nose (Decimal Inch) | 0.1772" |
| Ball Nose (mm) | 4.50mm |
| Helix | 30 Degree |
| Series | G9I03 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
