| Manufacturer Part Number | G9I04022N |
| Mill Diameter (Inch) | 11/32" |
| Mill Diameter (Decimal Inch) | 0.3438" |
| Mill Diameter (mm) | 8.73mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Ball Nose (Decimal Inch) | 0.1719" |
| Ball Nose (Inch) | 11/64" |
| Ball Nose (mm) | 4.37mm |
| Helix | 30 Degree |
| Series | G9I04 |
| Coated | X-Coating |
| Material | Carbide |

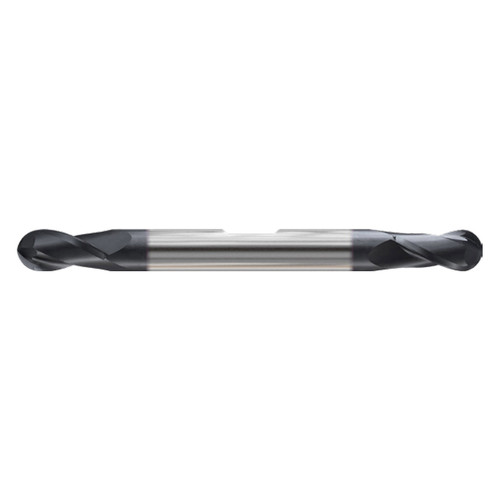

| Type | Ball Nose Double End |
| Corner Type | Ball Nose |
