| Manufacturer Part Number | G9J52918N |
| Mill Diameter (Inch) | 3/16" |
| Mill Diameter (Decimal Inch) | 0.188" |
| Mill Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.625" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (Decimal Inch) | 2.250" |
| Overall Length (mm) | 57.15mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.51mm |
| Coating | X Coated |
| Material | Carbide |
| Helix Angle (Degree) | 35/37 Degree |
| Number of Flutes | 4 |
| Shank Type | Plain |
| Corner Type | Corner |
| Application | P,M,K |
| Series | G9J52 |

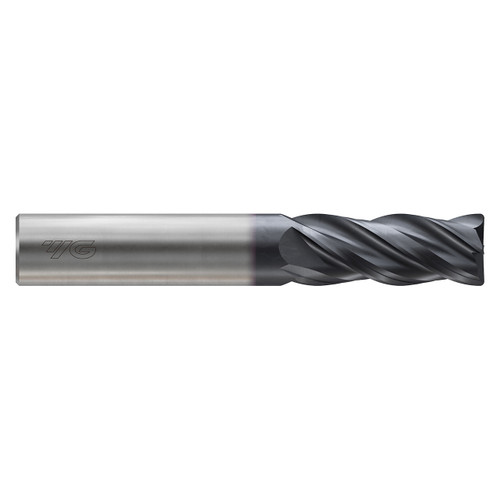

| Product Type | Corner Radius End Mill |
