Product Specifications
Manufacturer Part Number | GM109008 |
Mill Diameter (Inch) | 1/8" |
Mill Diameter (Decimal Inch) | 0.1250" |
Mill Diameter (mm) | 3.18mm |
Shank Diameter (Inch) | 1/4" |
Shank Diameter (Decimal Inch) | 0.2500" |
Shank Diameter (mm) | 6.35mm |
Length of Cut (Inch) | 1/8" |
Length of Cut (Decimal Inch) | 0.1250" |
Length of Cut (mm) | 3.18mm |
Overall Length (Inch) | 2-1/2" |
Overall Length (Decimal Inch) | 2.5000" |
Overall Length (mm) | 63.50mm |
Ball nose Radius (Inch) | 1/16" |
Ball Nose Radius (Decimal Inch) | 0.0625" |
Ball Nose Radius (mm) | 1.59mm |
LBS (Inch) | 1/4" |
LBS (Decimal Inch) | 0.2500" |
LBS (mm) | 6.35mm |
Neck Diameter (Inch) | 4/33" |
Neck Diameter (Decimal Inch) | 0.121" |
Neck Diameter (mm) | 3.07mm |
Helix (Degree) | 15 Degree |
Number of Flute | 2 |
Shank Type | Plain |
Material | Carbide |

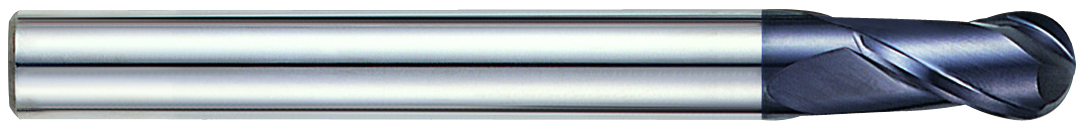

Product Type | Ball Nose End Mill |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
2
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Material:
Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
