| Manufacturer Part Number | GM212902 |
| Mill Diameter (Inch) | 5/16" |
| Mill Diameter (Decimal Inch) | 0.313" |
| Mill Diameter (mm) | 7.94mm |
| Corner Radius (Decimal Inch) | 0.030" |
| Corner Radius (mm) | 0.76mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Decimal Inch) | 1.125" |
| Length of Cut (mm) | 28.58mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Series | GM212 |
| Application | P |

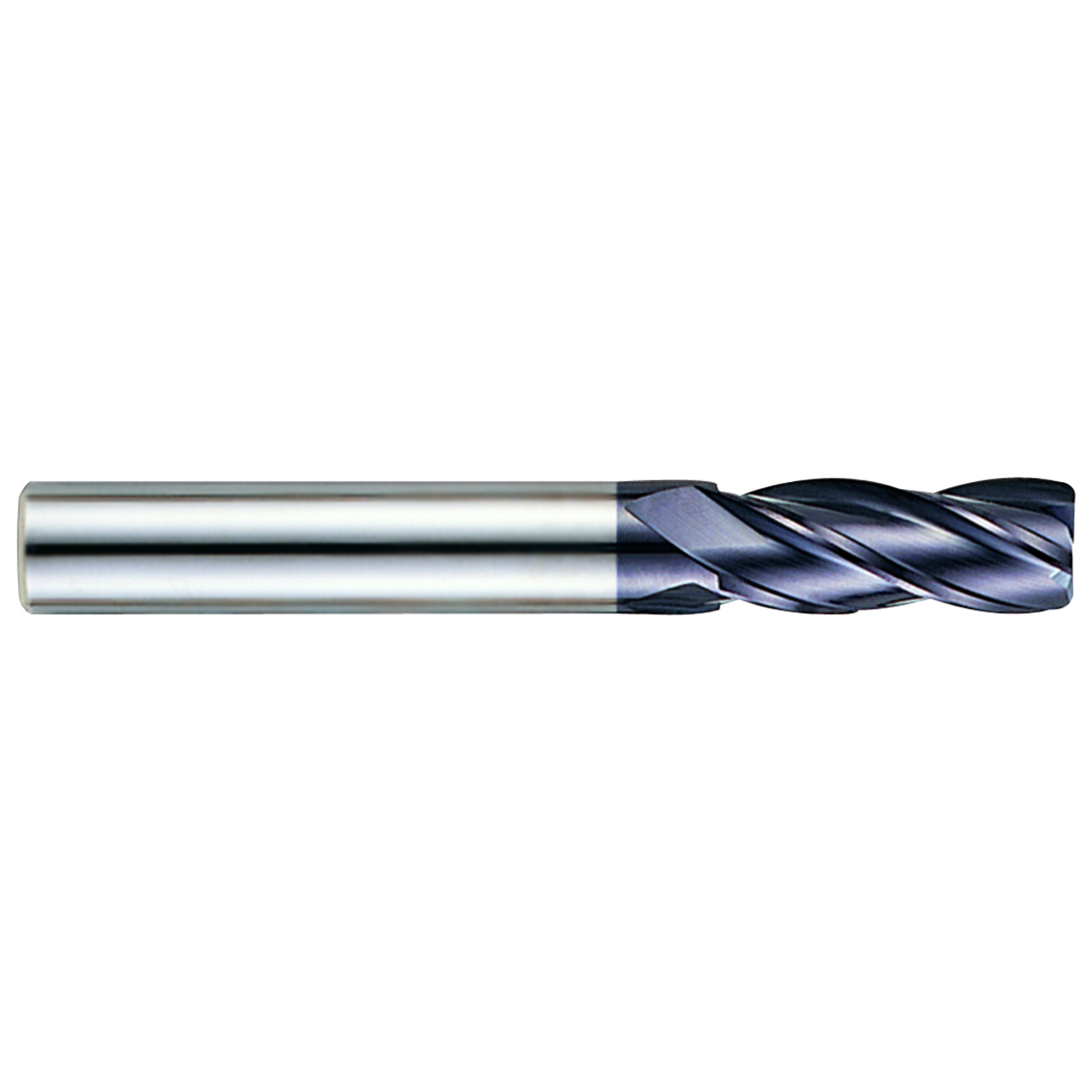

| Product Type | Corner Radius End Mill |
