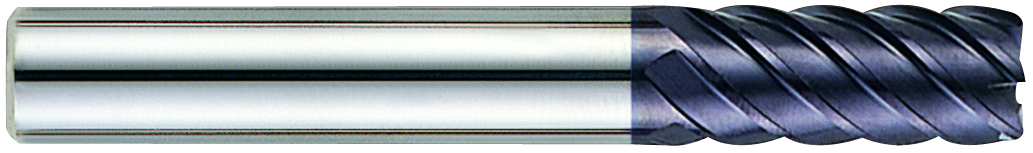

YG1 GM639024 | 3/8" Diameter x 3/8" Shank x 5/8" LOC x 3" OAL x 1/50" Radius 4 Flute Carbide Corner Radius End Mill

$40.23
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Material:
Carbide
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Corner Radius (Inch):
1/50"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
SKU:
25175990
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberGM639024
Mill Diameter (Inch)3/8"
Mill Diameter (Decimal Inch)0.3750"
Mill Diameter (mm)9.53mm
Shank Diameter (Inch)3/8"
Shank Diameter (Decimal Inch)0.3750"
Shank Diameter (mm)9.53mm
Length of Cut (Inch)5/8"
Length of Cut (Decimal Inch)0.6250"
Length of Cut (mm)15.88mm
Overall Length (Inch)3"
Overall Length (Decimal Inch)3.0000"
Overall Length (mm)76.20mm
Corner Radius (Inch)1/50"
Corner Radius (Decimal Inch)0.0200"
Corner Radius (mm)0.51mm
Helix (Degree)30 Degree
Number of Flute4
Shank TypePlain
MaterialCarbide
Product TypeCorner Radius End Mill
