Product Specifications
Manufacturer Part Number | GM649032 |
Mill Diameter (Inch) | 1/2" |
Mill Diameter (Decimal Inch) | 0.5000" |
Mill Diameter (mm) | 12.70mm |
Shank Diameter (Inch) | 1/2" |
Shank Diameter (Decimal Inch) | 0.5000" |
Shank Diameter (mm) | 12.70mm |
Length of Cut (Inch) | 1" |
Length of Cut (Decimal Inch) | 1.0000" |
Length of Cut (mm) | 25.40mm |
Overall Length (Inch) | 4" |
Overall Length (Decimal Inch) | 4.0000" |
Overall Length (mm) | 101.60mm |
Corner Radius (Inch) | 1/50" |
Corner Radius (Decimal Inch) | 0.0200" |
Corner Radius (mm) | 0.51mm |
Helix (Degree) | 30 Degree |
Number of Flute | 4 |
Shank Type | Plain |
Material | Carbide |

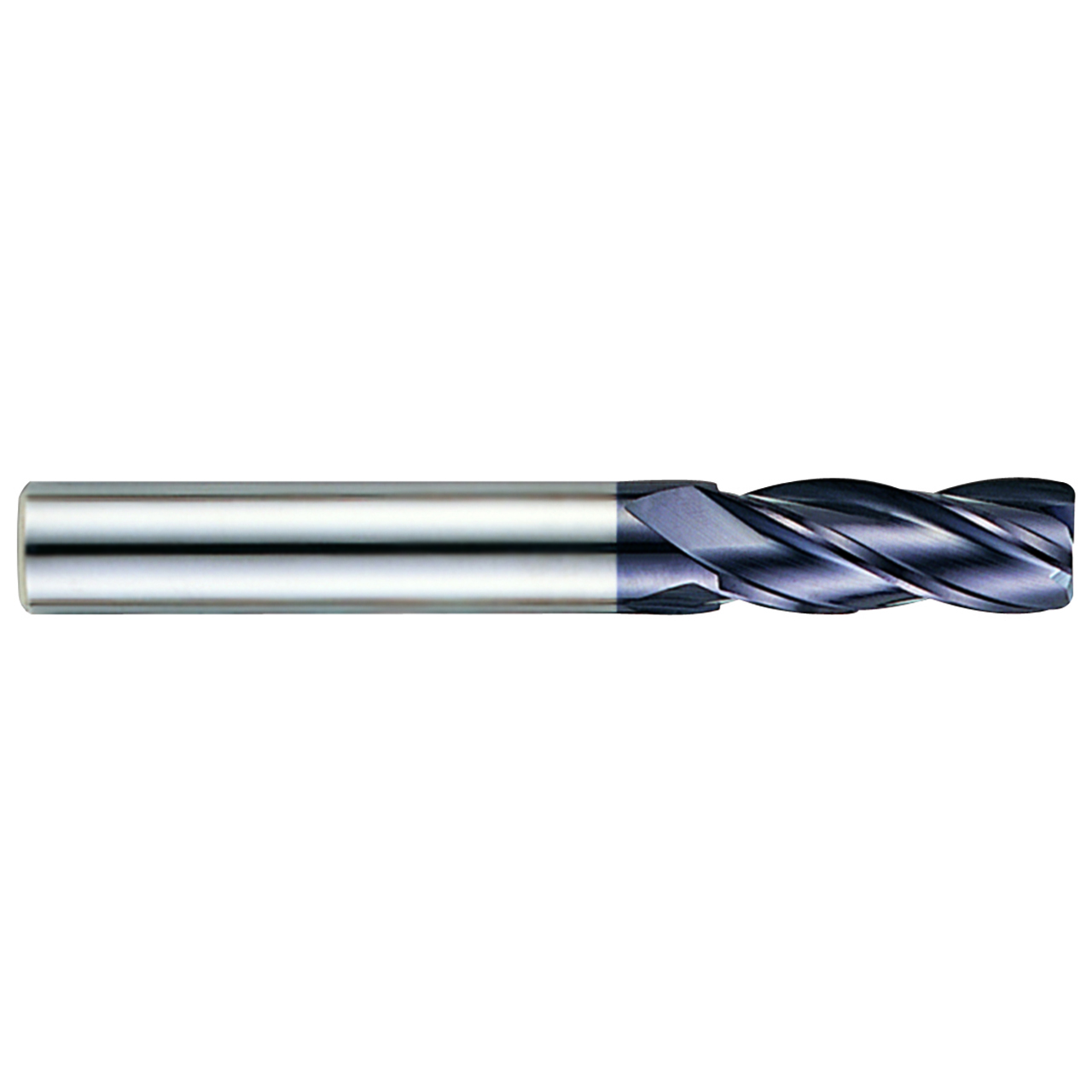

Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Material:
Carbide
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Corner Radius (Inch):
1/50"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
