Product Specifications

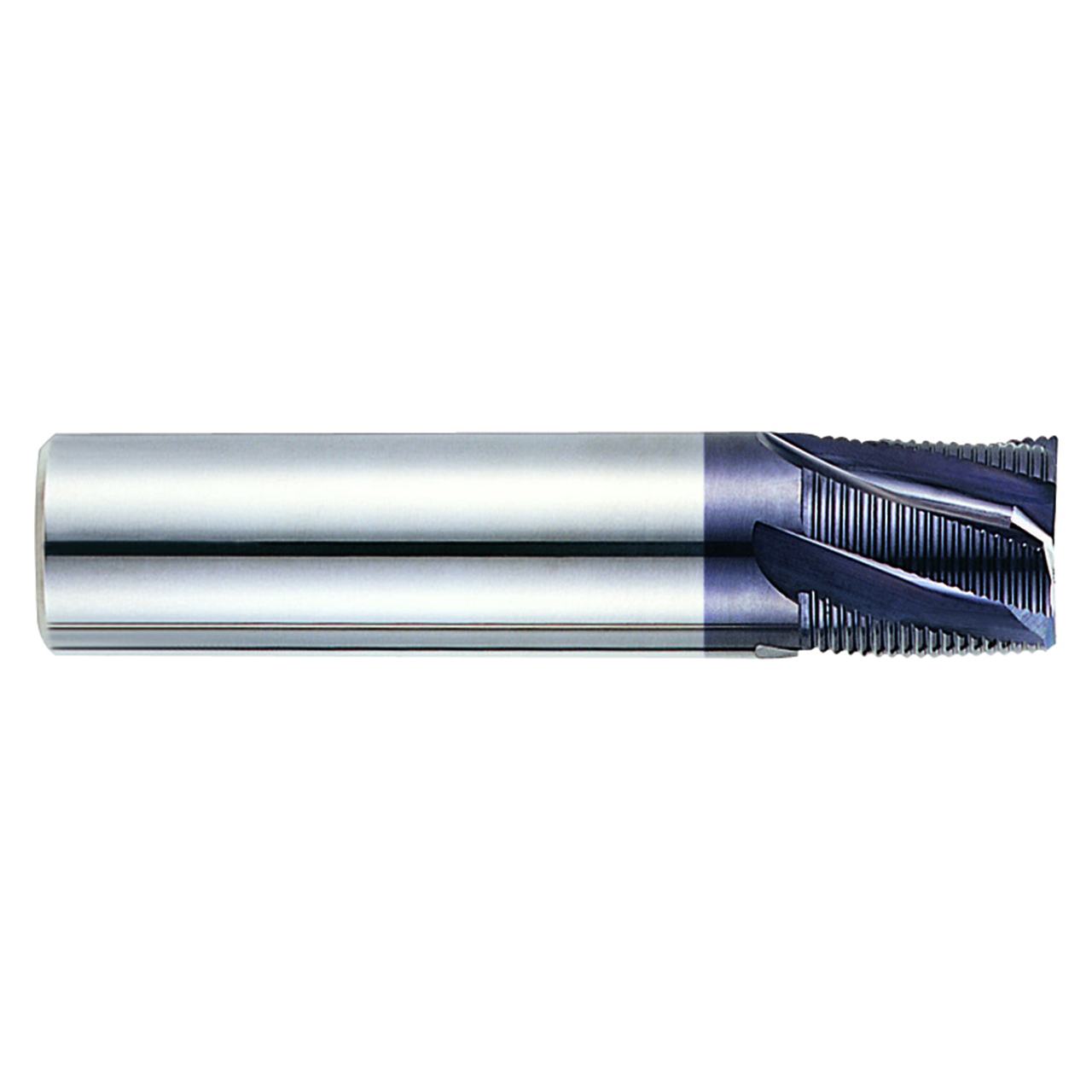

| Manufacturer Part Number | GM666048 |
| Mill Diameter (Inch) | 3/4" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Mill Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (mm) | 95.25mm |
| Helix (Degree) | 20 Degree |
| Chamfer Corner (mm) | 0.02mm |
| Chamfer Corner (Inch) | 0.0009" |
| Number of Flute | 4 |
| Shank Type | Plain |
| Material | Carbide |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Material:
Carbide
Overall Length (Inch):
3-3/4"
Overall Length (Decimal Inch):
3.7500"
Overall Length (mm):
95.25mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
