Product Specifications
| Manufacturer Part Number | GM813050 |
| Mill Diameter (Inch) | 12/61" |
| Mill Diameter (Decimal Inch) | 0.1969" |
| Mill Diameter (mm) | 5.00mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 37/94" |
| Length of Cut (Decimal Inch) | 0.3937" |
| Length of Cut (mm) | 10.00mm |
| Overall Length (Inch) | 3-3/20" |
| Overall Length (Decimal Inch) | 3.1496" |
| Overall Length (mm) | 80.00mm |
| Ball nose Radius (Inch) | 6/61" |
| Ball Nose Radius (Decimal Inch) | 0.0984" |
| Ball Nose Radius (mm) | 2.50mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

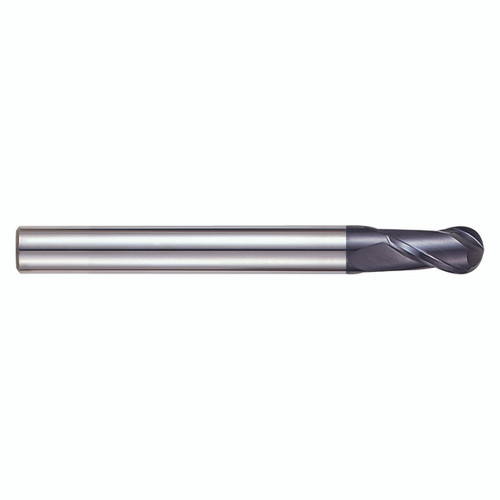

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
12/61"
Mill Diameter (Decimal Inch):
0.1969"
Mill Diameter (mm):
5.00mm
Number of Flutes:
2
Length of Cut (Inch):
37/94"
Length of Cut (Decimal Inch):
0.3937"
Length of Cut (mm):
10.00mm
Material:
Carbide
Overall Length (Inch):
3-3/20"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80.00mm
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
interval quantity:
1
