| Manufacturer Part Number | GM883914 |
| Mill Diameter (Decimal Inch) | 0.039" |
| Mill Diameter (mm) | 1.00mm |
| Shank Diameter (Decimal Inch) | 0.157" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.059" |
| Length of Cut (mm) | 1.50mm |
| LBS (Decimal Inch) | 0.472" |
| LBS (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 1.772" |
| Overall Length (mm) | 45.00mm |
| Neck Diameter (Decimal Inch) | 0.037" |
| Neck Diameter (mm) | 0.95mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Series | GM883 |
| Application | P |

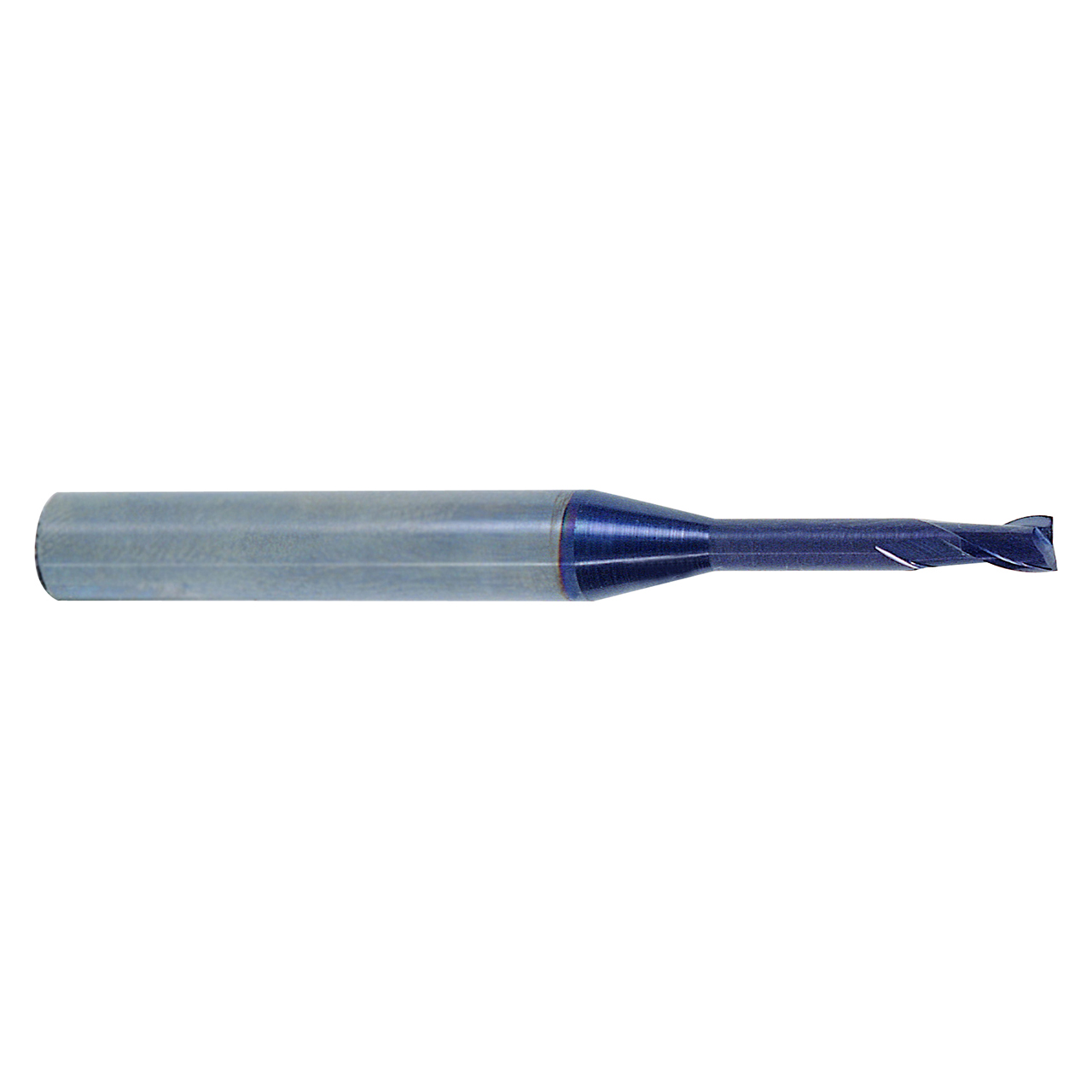

| Product Type | Square End Mill |
