Product Specifications
| Manufacturer Part Number | GM902060 |
| Mill Diameter (Decimal Inch) | 0.236" |
| Mill Diameter (mm) | 6.00mm |
| Ball Nose Radius (Decimal Inch) | 0.118" |
| Ball Nose Radius (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.472" |
| Length of Cut (mm) | 12.00mm |
| LBS (Decimal Inch) | 1.339" |
| LBS (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Neck Diameter (Decimal Inch) | 0.315" |
| Neck Diameter (mm) | 8.00mm |
| Under Neck Parallel Length (Decimal Inch) | 0.591" |
| Under Neck Parallel Length (mm) | 15.00mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Series | GM902 |
| Application | P |

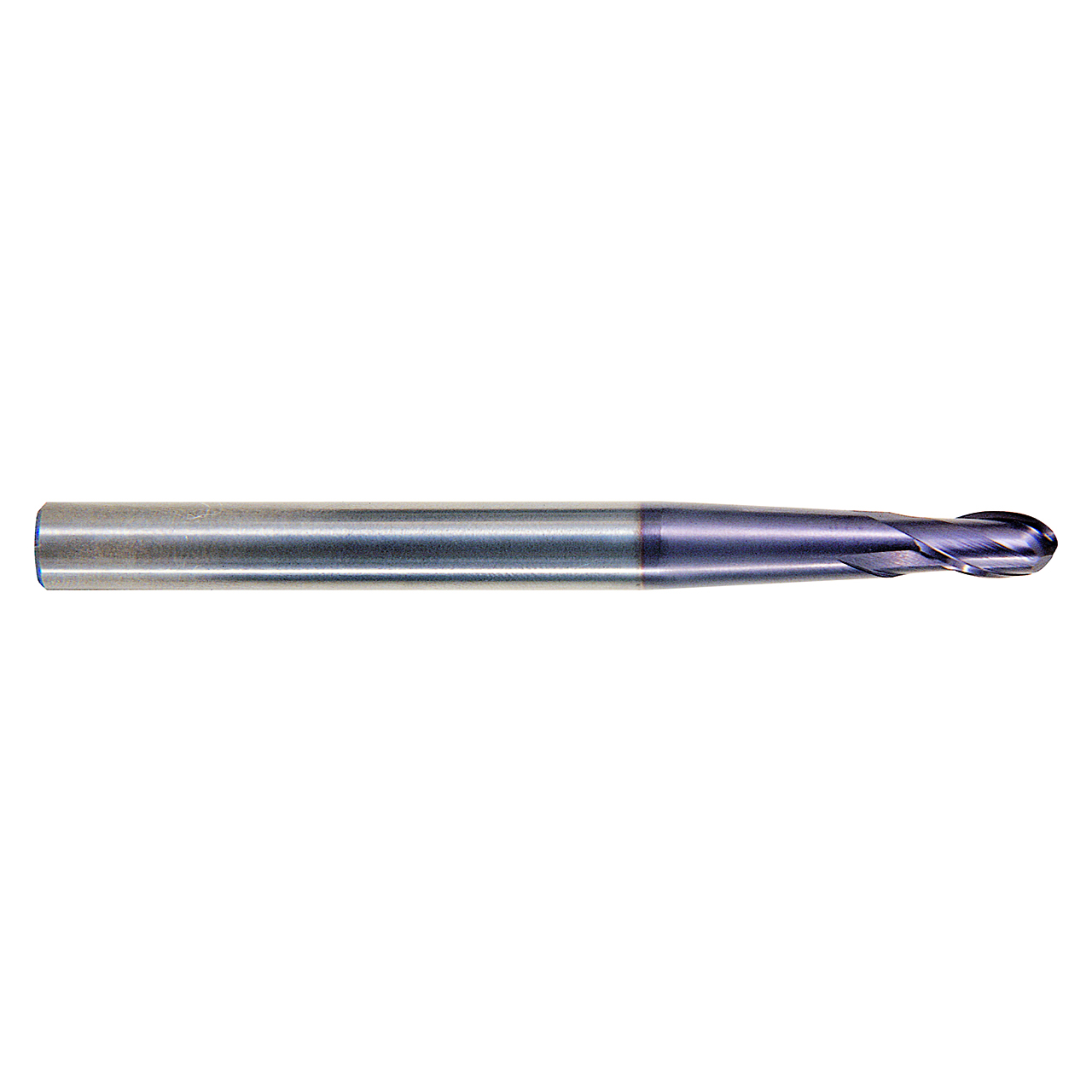

| Product Type | Ball Nose End Mill |
