Product Specifications
| Manufacturer Part Number | GM961032 |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Mill Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (mm) | 107.95mm |
| Ball nose Radius (Inch) | 1/4" |
| Ball Nose Radius (Decimal Inch) | 0.2500" |
| Ball Nose Radius (mm) | 6.35mm |
| LBS (Inch) | 1-3/8" |
| LBS (Decimal Inch) | 1.3750" |
| LBS (mm) | 34.93mm |
| Neck Diameter (Inch) | 31/63" |
| Neck Diameter (Decimal Inch) | 0.492" |
| Neck Diameter (mm) | 12.50mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

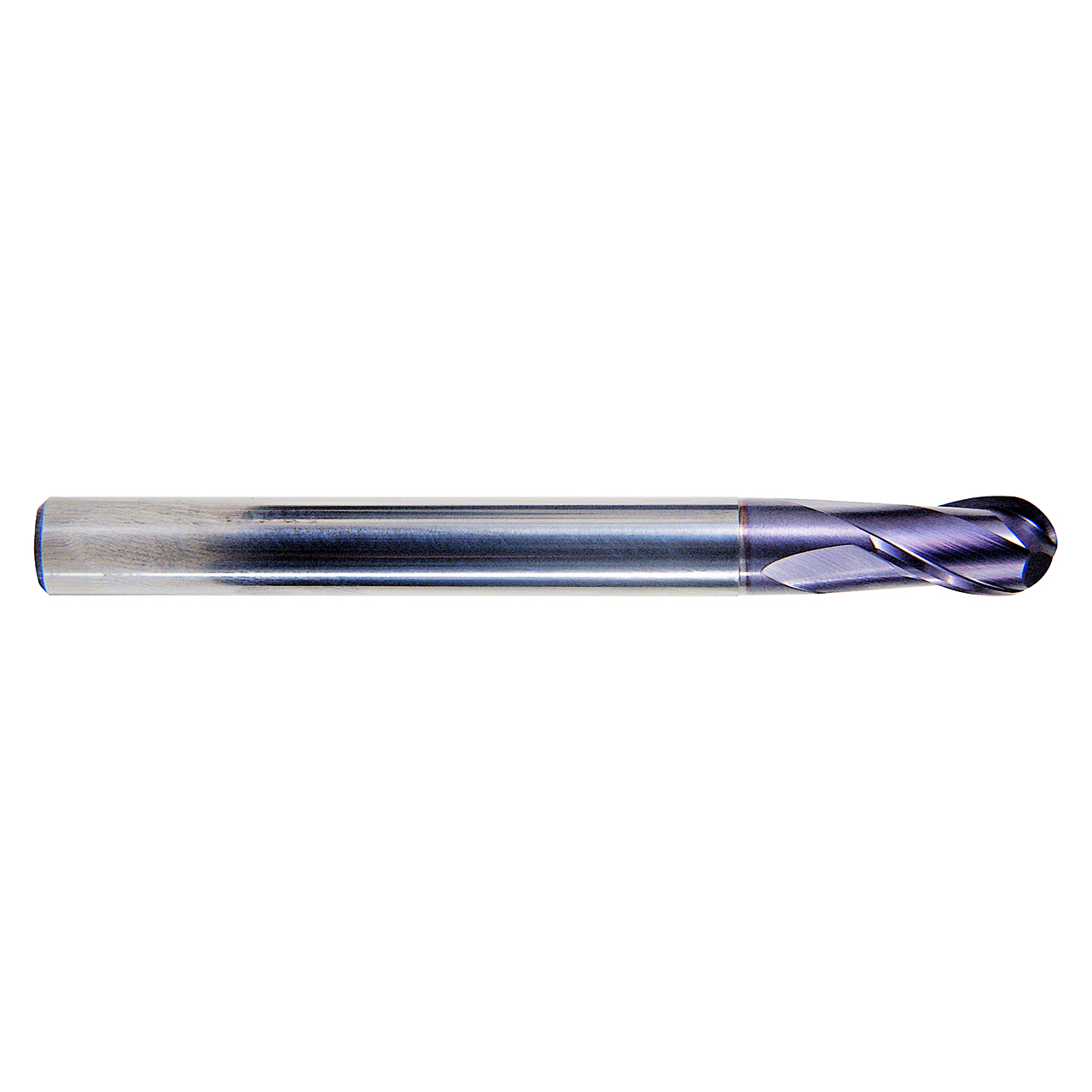

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
2
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Material:
Carbide
Overall Length (Inch):
4-1/4"
Overall Length (Decimal Inch):
4.2500"
Overall Length (mm):
107.95mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
