Product Specifications
| EDP Number | GMF15917 |
| Diameter (Decimal Inch) | 0.0938" |
| Diameter (Inch) | 3/32" |
| Diameter (mm) | 2.38mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.2500" |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 3.125" |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (mm) | 79.37mm |
| Ball Nose Radius (Decimal Inch) | 0.0469" |
| Ball Nose Radius (Inch) | 3/64" |
| Ball Nose Radius (mm) | 1.19mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | GMF15 |
| Material | Carbide |

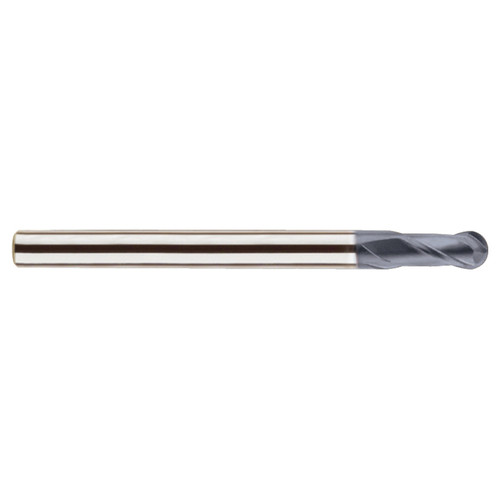

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.0938"
Diameter (Inch):
3/32"
Diameter (mm):
2.38mm
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (Inch):
1/4"
Shank Diameter (mm):
6.35mm
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (Inch):
1/4"
Length of Cut (mm):
6.35mm
Overall Length (Decimal Inch):
3.1250"
Overall Length (Inch):
3-1/8"
Overall Length (mm):
79.38mm
Shank Style:
Plain
Helix Angle:
30 Degree
Finish/Coating:
AlCrN
Number of Flutes:
2
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
interval quantity:
1
