Product Specifications

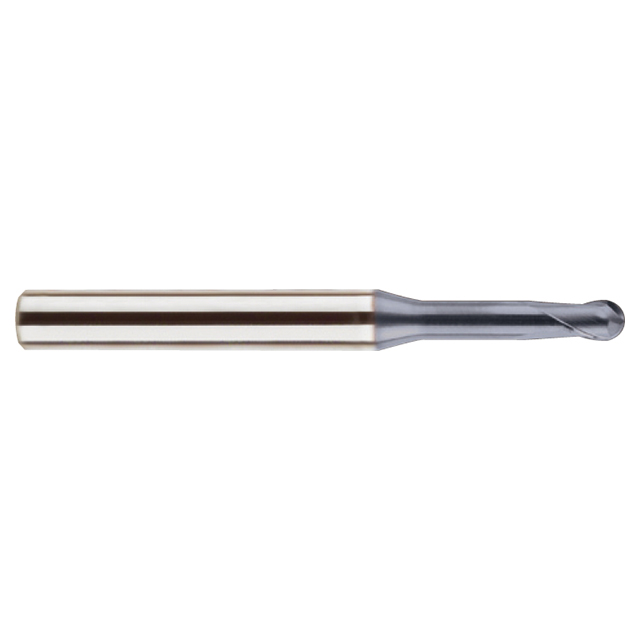

| EDP Number | GMF16013 |
| Diameter (Decimal Inch) | 0.2031" |
| Diameter (Inch) | 13/64" |
| Diameter (mm) | 5.16mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.2500" |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (mm) | 6.35mm |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (mm) | 69.85mm |
| Ball Nose Radius (Decimal Inch) | 0.1020" |
| Ball Nose Radius (Inch) | 5/49" |
| Ball Nose Radius (mm) | 2.59mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | GMF16 |
| Material | Carbide |
| Product Type | Ball Nose with Neck End Mill |
