| Manufacturer Part Number | GMF16928 |
| Diameter (Decimal Inch) | 0.0313" |
| Diameter (Inch) | 1/32" |
| Diameter (mm) | 0.79mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.0313" |
| Length of Cut (Inch) | 1/32" |
| Length of Cut (mm) | 0.79mm |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (Inch) | 1-3/4" |
| Overall Length (mm) | 44.45mm |
| Ball Nose Radius (Decimal Inch) | 0.0156" |
| Ball Nose Radius (Inch) | 1/64" |
| Ball Nose Radius (mm) | 0.40mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | GMF16 |
| Material | Carbide |

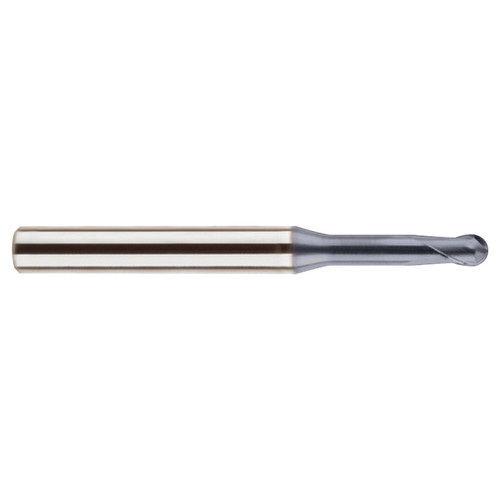

| Product Type | Ball Nose with Neck End Mill |
