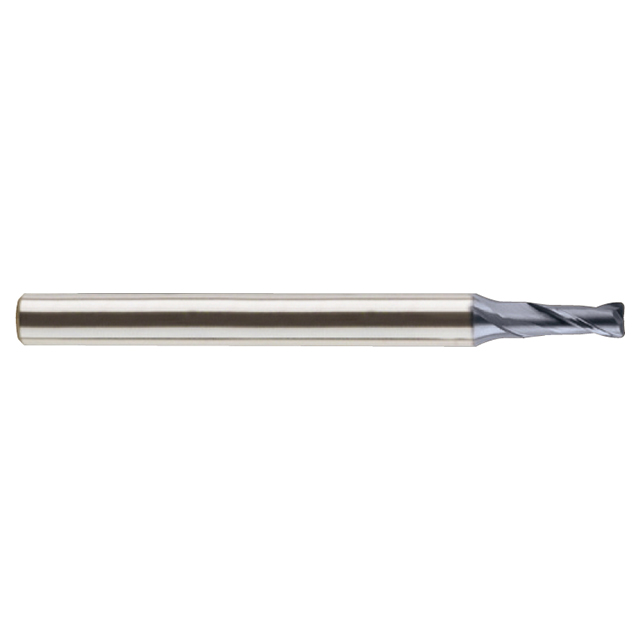

Product Specifications
| EDP Number | GMF18036 |
| Diameter (Decimal Inch) | 0.5625" |
| Diameter (Inch) | 9/16" |
| Diameter (mm) | 14.29mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1 3/8" |
| Length of Cut (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Corner Radius (Decimal Inch) | 0.0400" |
| Corner Radius (Inch) | 1/25" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 1.02mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | GMF18 |
| Material | Carbide |
| Product Type | Corner Radius End Mill |
