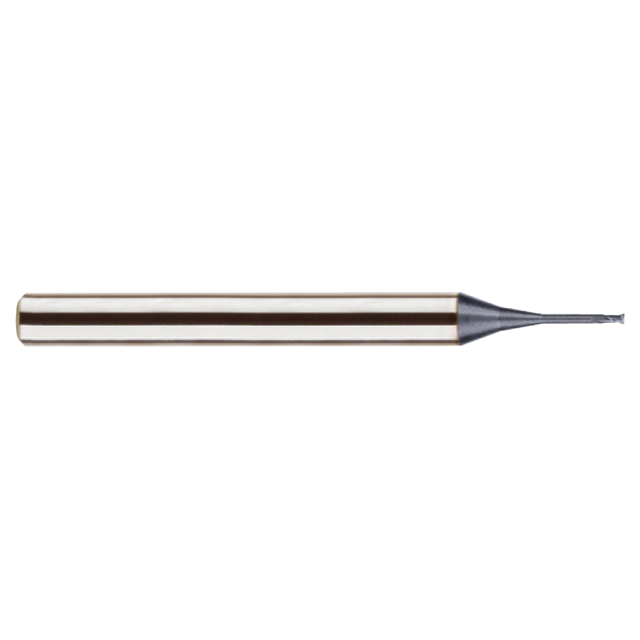

| Manufacturer Part Number | GMF19993 |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.1875" |
| Length of Cut (Inch) | 3/16" |
| Length of Cut (mm) | 4.76mm |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (mm) | 69.85mm |
| Corner Radius (Decimal Inch) | 0.0080" |
| Corner Radius (Inch) | 1/125" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 0.20mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | GMF19 |
| Material | Carbide |
| Product Type | Corner Radius With Neck End Mill |
