Product Specifications
| EDP Number | GMF20926 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.1875" |
| Length of Cut (Inch) | 1 3/16" |
| Length of Cut (mm) | 30.16mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (mm) | 107.95mm |
| Corner Radius (Decimal Inch) | 0.0400" |
| Corner Radius (Inch) | 1/25" |
| Shank Style | Plain |
| Helix Angle (Degree) | Variable |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Corner Radius (mm) | 1.02mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | GMF20 |
| Material | Carbide |

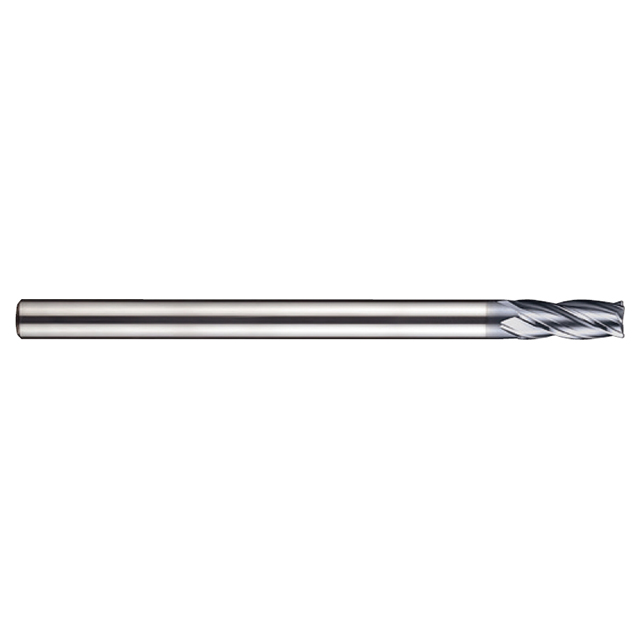

| Product Type | Corner Radius End Mill |
