| Manufacturer Part Number | GMF23023 |
| Diameter (Decimal Inch) | 0.3594" |
| Diameter (Inch) | 23/64" |
| Diameter (mm) | 9.13mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (mm) | 69.85mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | GMF23 |
| Material | Carbide |

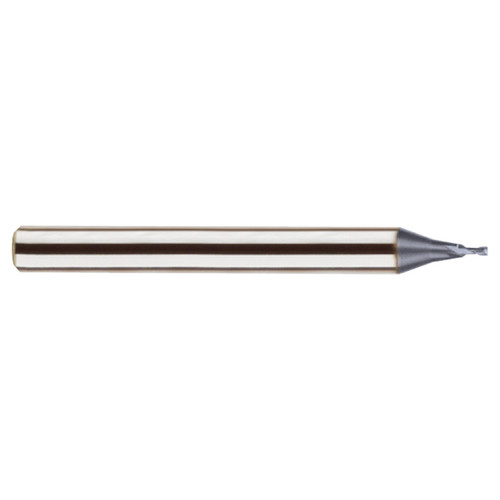

| Product Type | Square End Mill |
