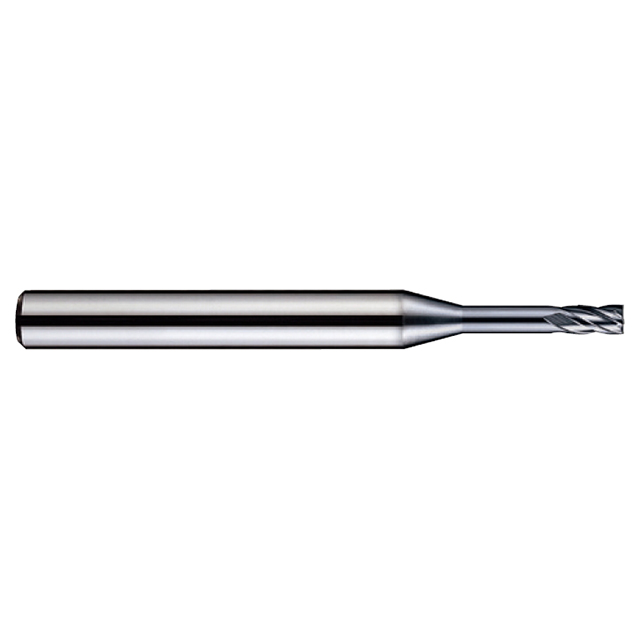

Product Specifications
| EDP Number | GMF28005 |
| Diameter (Decimal Inch) | 0.0781" |
| Diameter (Inch) | 5/64" |
| Diameter (mm) | 1.98mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1250" |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | GMF28 |
| Material | Carbide |
| Product Type | Square End Mill |
